RAM® Yoke Clamp Mount with Curved Plate for Pilatus PC-12NG
53 340 HUF
Netto price:
42 000
HUF
Piece
(pc)
Piece
(pc)
Description

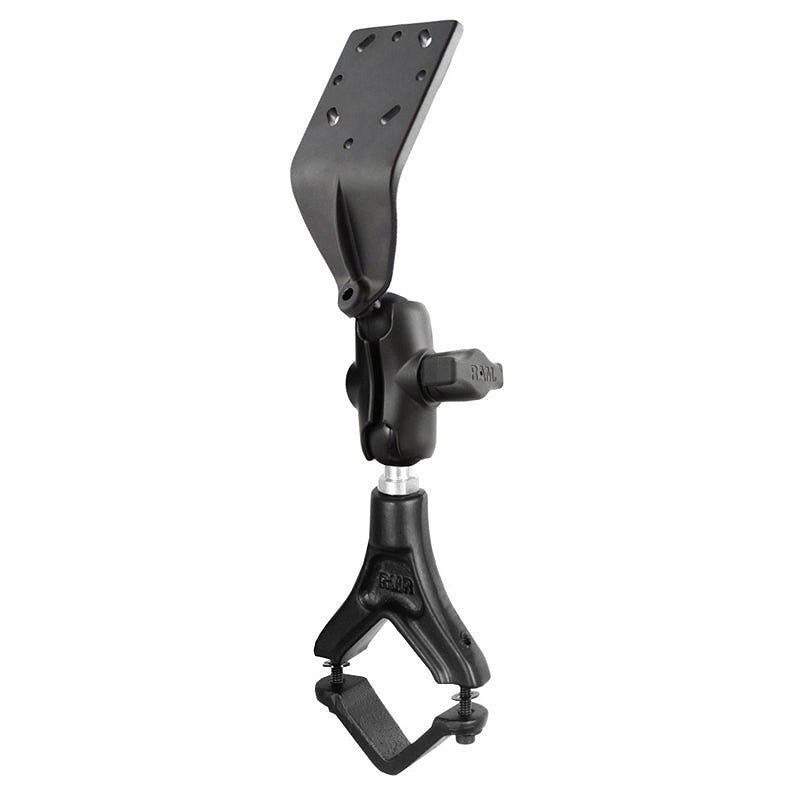

The RAM-B-380-A-125BU consists of a yoke clamp base, SHORT double socket arm and curved angle plate. The yoke clamp base is designed with the Pilatus PC-12NG in mind; however, if your aircraft yoke has an outer diameter within the compatible range, this product will fit your yoke. The yoke clamp base will accommodate an outer diameter range of 1.25" – 1.625". The curved angle plate is 2.5" square with pre-drilled holes for many different screw hole patterns, including the universal AMPS hole pattern and all RAM made cradles. The connection section extends approximately 2.25" forward, at a 45 degree angle, from the center of the 1" ball and approximately 1.5" above the 1" ball (to the bottom of the connection section of the plate).
Specification
- Brand
- RAM Mounts
- EAN
- 793442937224
- Hardware Included
- (2) #10-24 x 1" Socket Head Cap Screws, (2) #10 Stainless Steel Washers, (2) #10 Screw Retaining Rings, (1) 2" x 7.5" Rubber Adhesive Strip
- Clamp Range
- 1.4" - 1.625"
- Socket to Socket Length
- 1.75"
- Ball Size
- B Size (1")
- Weight Capacity
- Standard Use: 2 lbs, Heavy-Duty Use: 1 lb
- Materials
- Marine-grade aluminum
- Packaging Type
- Poly Bag
- Hole Pattern
- Various AMPS Hole Patterns, See Drawing
Declaration
- EAN code
- 793442937224
- Netto weight
- 0.36 kg
- Brutto weight
- 0.36 kg
