RAM® Strap Hose Clamp Mount with 100x100mm VESA Plate
39 360 HUF
Netto price:
30 992
HUF
Piece
(pc)
Piece
(pc)
Description

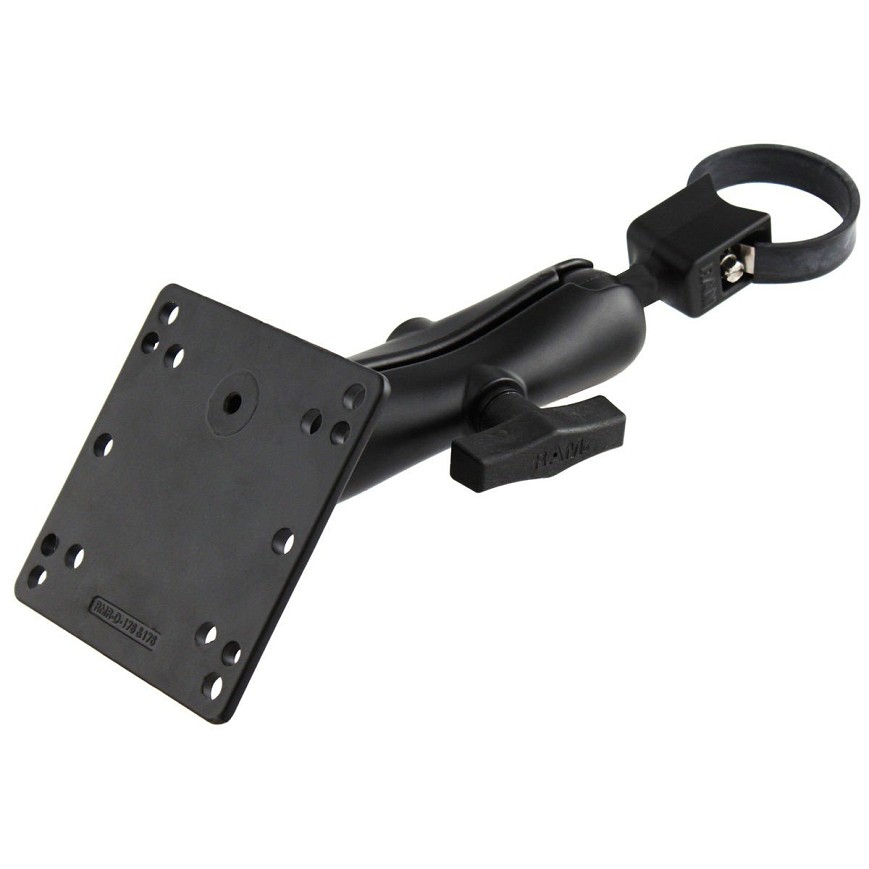

The RAM-108B-246U consists of a strap clamp 1.5" diameter ball base, standard length double socket arm and VESA (4 X 75mm) (4 X 100mm) plate. The strap will accommodate rails from 1" to 2.1" in diameter. Included is a rubber protection strip to help reduce vibration and to prevent scratching of the mounting surface. The 4.75" square plate contains 4x100mm holes and 4x75mm holes in each corner.
Specification
- Brand
- RAM Mounts
- EAN
- 793442935107
- Hardware Included
- (1) #20 Worm Drive Strap Clamp, (1) #28 Worm Drive Strap Clamp, (1) 6" Rubber Strip, (4) .312" x .187" Shoulder Washers
- Clamp Range
- 1" - 2.1" diameter
- Socket to Socket Length
- 4.66"
- Ball Size
- C Size (1.5")
- Weight Capacity
- Standard Use: 4 lbs, Heavy-Duty Use: 3 lbs
- Materials
- Marine-grade aluminum
- Packaging Type
- Poly Bag
- Product Dimensions
- Overall Height: 9"
- Hole Pattern
- See Drawing
Declaration
- EAN code
- 793442935107
- Netto weight
- 0.76 kg
- Brutto weight
- 0.76 kg
