RAM® Quick-Grip™ 15W Waterproof Wireless Charging Handlebar Mount

RAM Mounts
RAM Mounts
357.57 EUR
Brand:
RAM Mounts
Product code:
ram-b-149z-a-un14w-v7m-1
Serial number
RAM-B-149Z-A-UN14W-V7M-1
125 150 HUF
Netto price: 98 543 HUF
Piece (pc)
Piece (pc)
Description

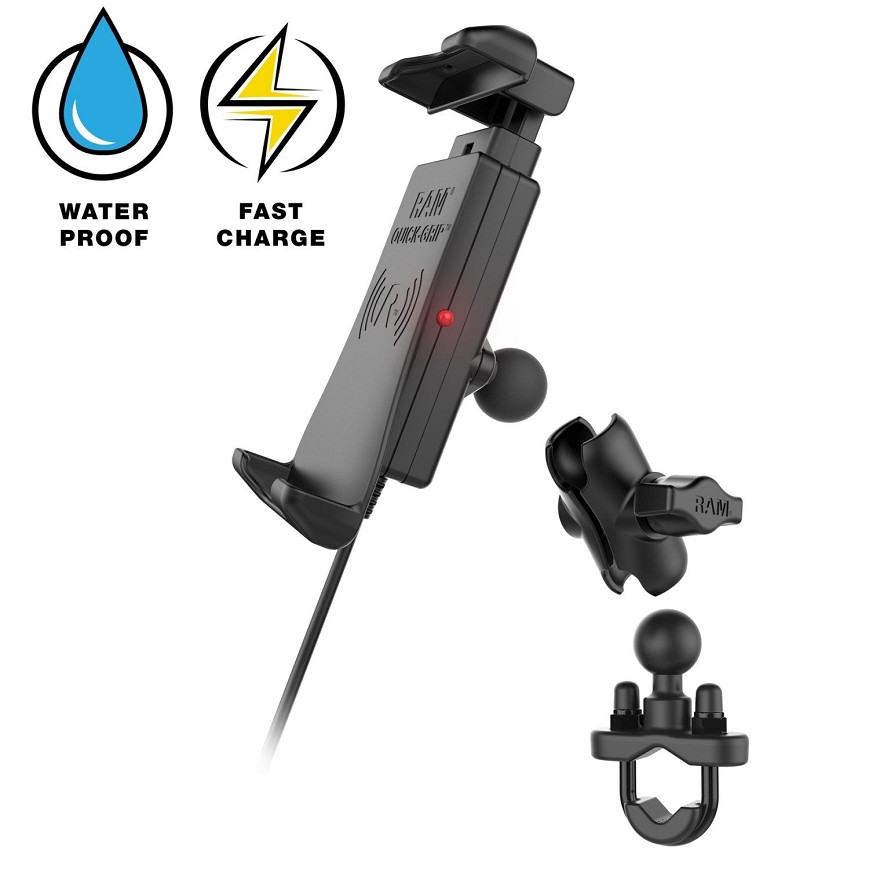

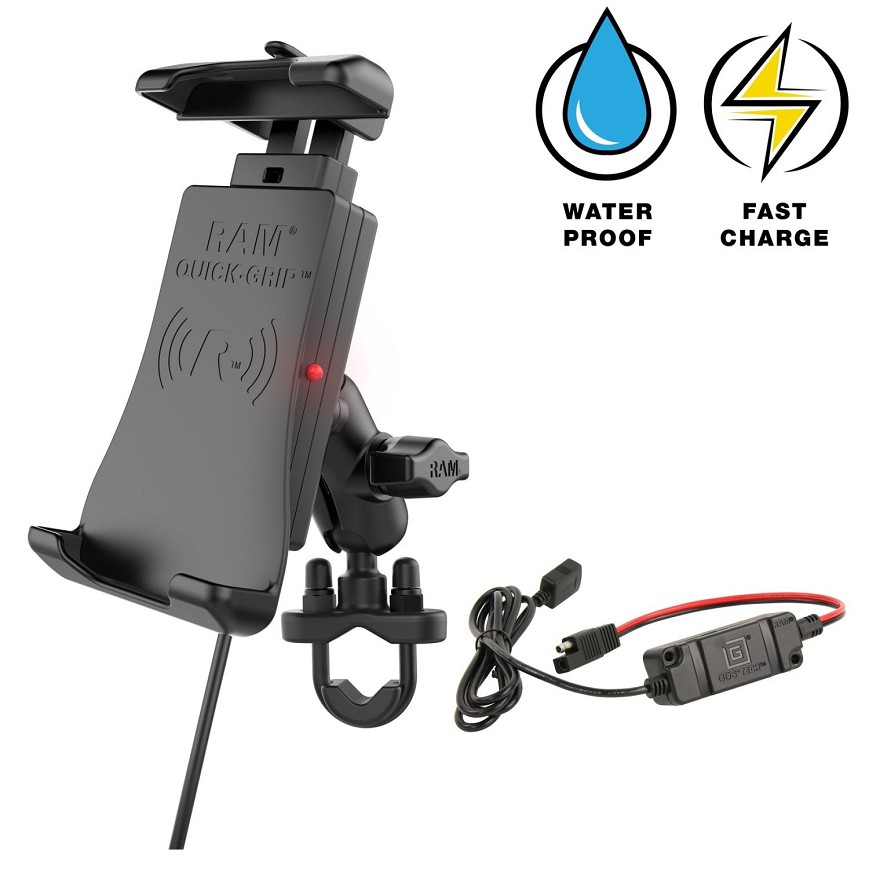

The RAM® Quick-Grip™ Wireless is a patented, universal waterproof wireless charging cradle for phones. As part of the spring-loaded RAM® Quick-Grip™ family, this cradle allows for single-handed placement and removal of your phone while taking advantage of Qi wireless phone charging. Both the top and bottom cups feature rubber to help hold your phone firmly in place. To insert your device, use your phone to push the top cup upward and then gently place your device against the cradle for a secure fit. This Qi compatible wireless charging cradle ensures your compatible phone charges as long as it’s within the listed compatible dimensions. For added security and peace of mind, a device tether is included that’s recommended for outdoor applications. This RAM® Quick-Grip™ Wireless handlebar kit includes a B size diamond base featuring a 1” rubber ball, short length double socket arm, and zinc-coated U-bolt base. U-bolt hardware accommodates rails from .5" to 1.25" in diameter. The connected Type-A male pigtail connector features an in-line switch that allows you to turn off the wireless charging module when not in use. For in-vehicle charging, attach the pigtail to the included 1.2m Type-A male to Type-A female extension cable. This kit includes a hardwire charger.
Specification
Brand
RAM Mounts
EAN
793442932243
Hardware Included
(1) Safety Tether, (1) Silicon sleeve for USB waterproof connection, (1) Hardwire Charger with Cable, (4) Small zip ties, (4) Large zip ties, (1) 1/4"-20 U-Bolt for .5" - 1" Rails, (1) 1/4"-20 U-Bolt for 1" - 1.25" Rails, (2) 1/4"-20 Nylock Nuts, (2) Rubber Caps, (1) U-Bolt Spacer
Holder Dimensions
Height Range: 5.625" - 6.625", Max Width: 3.125", Max Depth: .7"
Power Specifications
Input Power:5V-2A; 9V-1.67A, Output: 15W, Conversion Efficiency: 85% Max, Maximum Case Thickness: 6mm, Working Frequency: 110-205KHZ, Product Standard: WPC v.1.2.4, Qi Compatible, Compatible with QC2.0/QC3.0 power supplies
Input Connector
USB Type-A Male
Input Cable Length
20" with optional 1.2M extension cable
Operating Temperature
0°C to +37.7°C
Regulatory
Over Voltage Protection, Short Circuit Protection, Reverse Polarity Protection, RoHS Compliance, WEEE Compliance, SAE J-1113-5 Load Dump (Transient Voltage), Moisture Resistant
Certifications
CE Certification, E-Mark Certification, RCM Certification, FCC Certification
Clamp Range
.5" - 1.25" diameter
Socket to Socket Length
1.75"
Ball Size
B Size (1")
Weight Capacity
Standard Use: 2 lbs, Heavy-Duty Use: 1 lb
Materials
Marine-grade aluminum, High strength composite, Stainless steel
Packaging Type
Retail Box
Declaration
EAN code
793442932243
Netto weight
0.85 kg
Brutto weight
0.85 kg
