RAM® Power + Dual USB Dock for Tab Active3 with OtterBox uniVERSE

RAM Mounts
RAM Mounts
173.63 EUR
Brand:
RAM Mounts
Product code:
ram-hol-sam60pd2-ot1u
Serial number
RAM-HOL-SAM60PD2-OT1U
60 770 HUF
Netto price: 47 850 HUF
Piece (pc)
Piece (pc)
Description

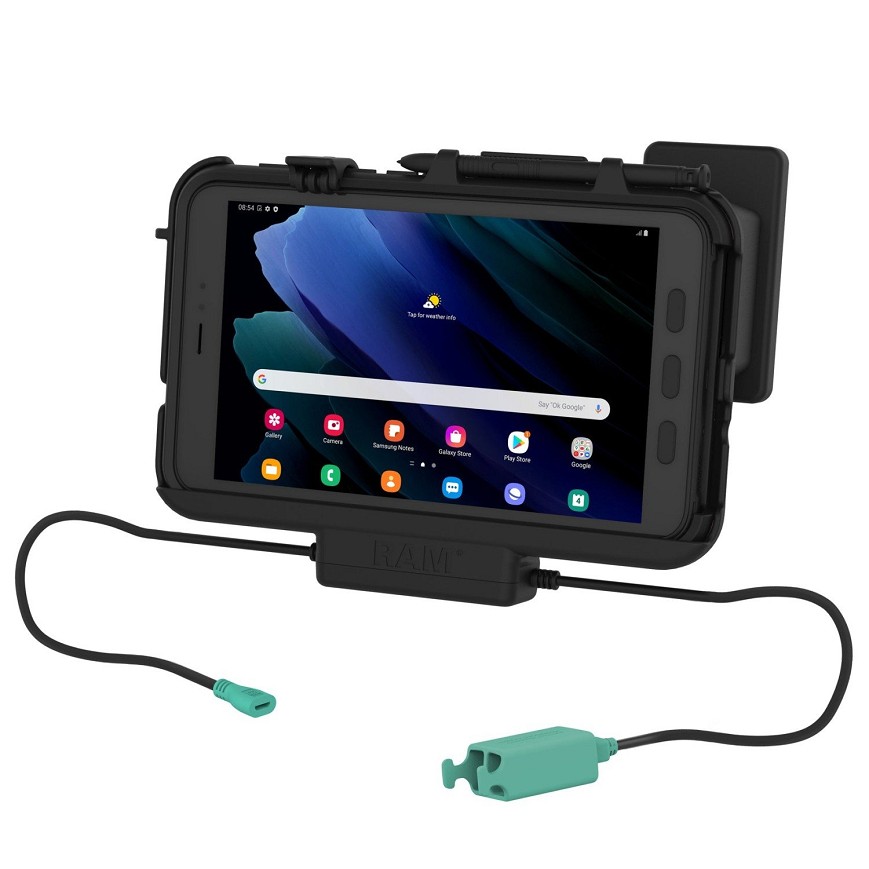

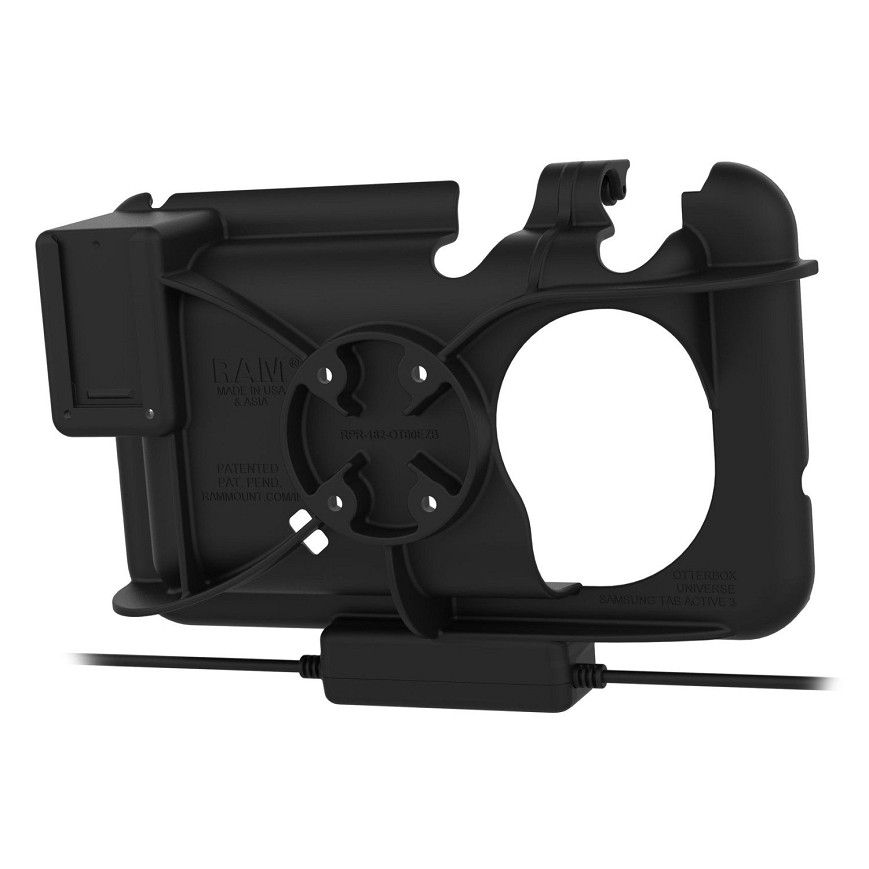

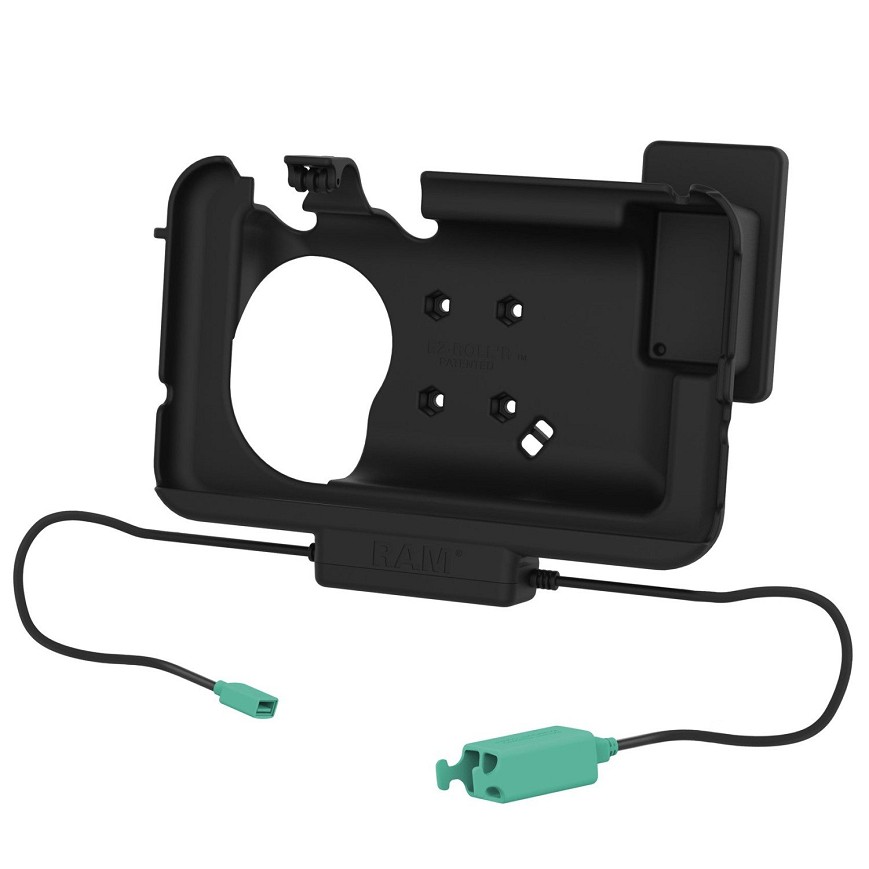

This powered dock for the Samsung Tab Active3 wrapped in an OtterBox uniVERSE case has been designed to meet the demands of field workers in a variety of applications including transportation, field sales, logistics, manufacturing, and much more. Power and data sync capabilities are provided to the device through GDS® pogo pins while taking advantage of this dock's dual USB-A port to support up to two additional peripherals making this the ideal, compact mounting solution for your mobile workstation. This dock also includes and integrated OtterBox uniVERSE accessory holder on the back of the holder to accommodate any accessory with a uniVERSE module. Additional cavity in the back of the dock allows room for the GDS® Hand-Stand™ and shoulder strap accessories. Access to the stylus remains while the device is docked. Included is a set of four nuts and bolts to connect the dock to any RAM® components containing the universal AMPS hole pattern. Also included is the mUSB female pigtail, GDS® USB 2.0 cable, cable clamp, and zip ties. Look to the RAM-GDS-CHARGE-V7BU hardwire charger or the RAM-GDS-CHARGE-USB2 CIG cigarette vehicle charger for supplying power.
Specification
Brand
RAM Mounts
EAN
793442956225
Hardware Included

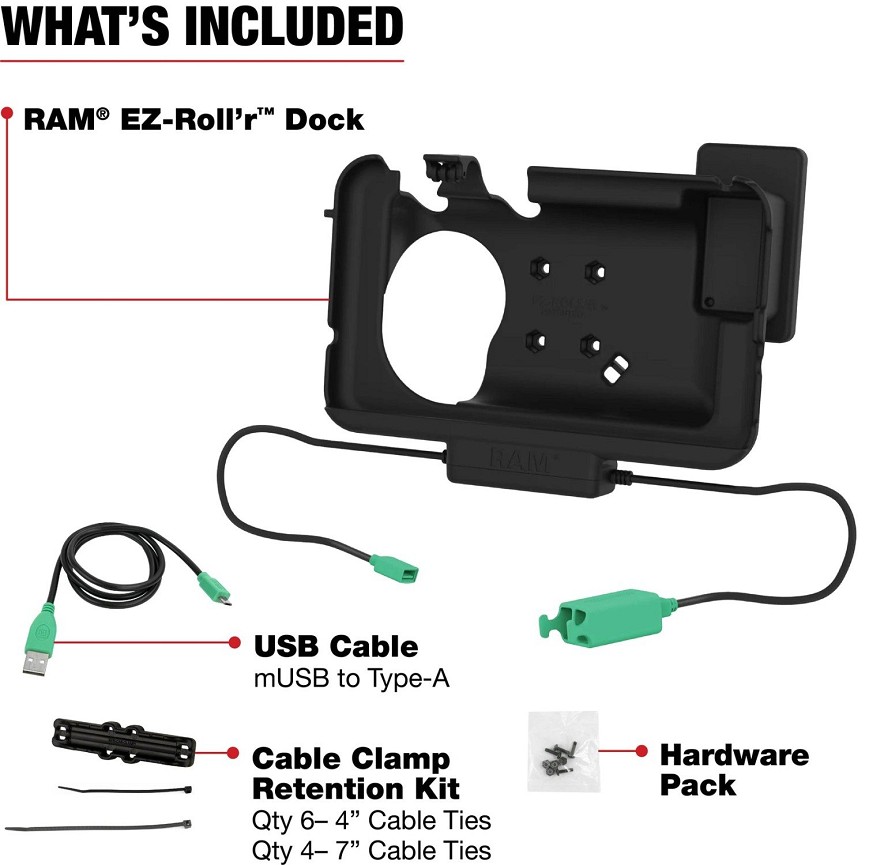

(4) #8-32 x 5/8" Machine Screws, (4) #8-32 Nylock Nuts, (1) GDS® Genuine USB 2.0 Straight Cable, (1) Optional Cable Clamp Housing, (4) Large Cable Ties, (6) Small Cable Ties
Input Voltage
4.4-5.4VDC (USB power source dependent)
Output Voltage
4.4VDC-5.4VDC (USB power source dependent)
Power Output
500mA per USB port
Input Connector
mUSB 2.0 Female
Input Cable Length
214mm
Output Connector
(2) USB 1.1 Type A
Output Cable Length
217mm
Peripheral Output
900mAh (per port)
Transfer Speed
12Mbps
Materials
High strength composite
Packaging Type
Poly Bag
Hole Pattern
4-Hole AMPS: 1.181" x 1.496"
Declaration
EAN code
793442956225
Netto weight
0.35 kg
Brutto weight
0.35 kg
