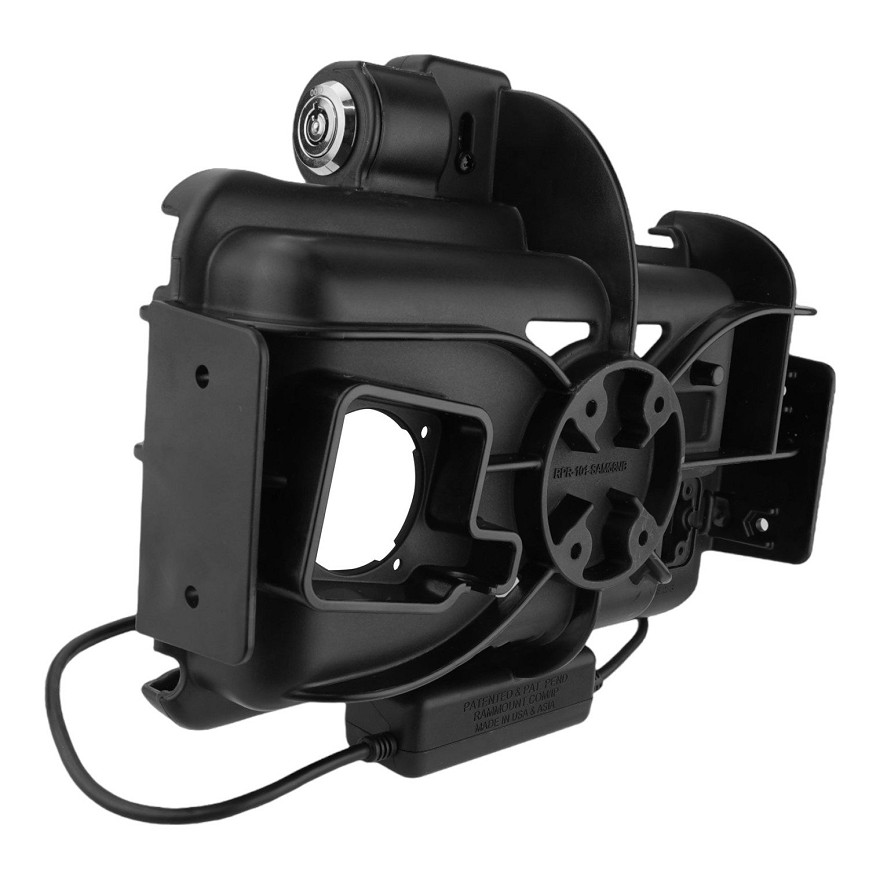

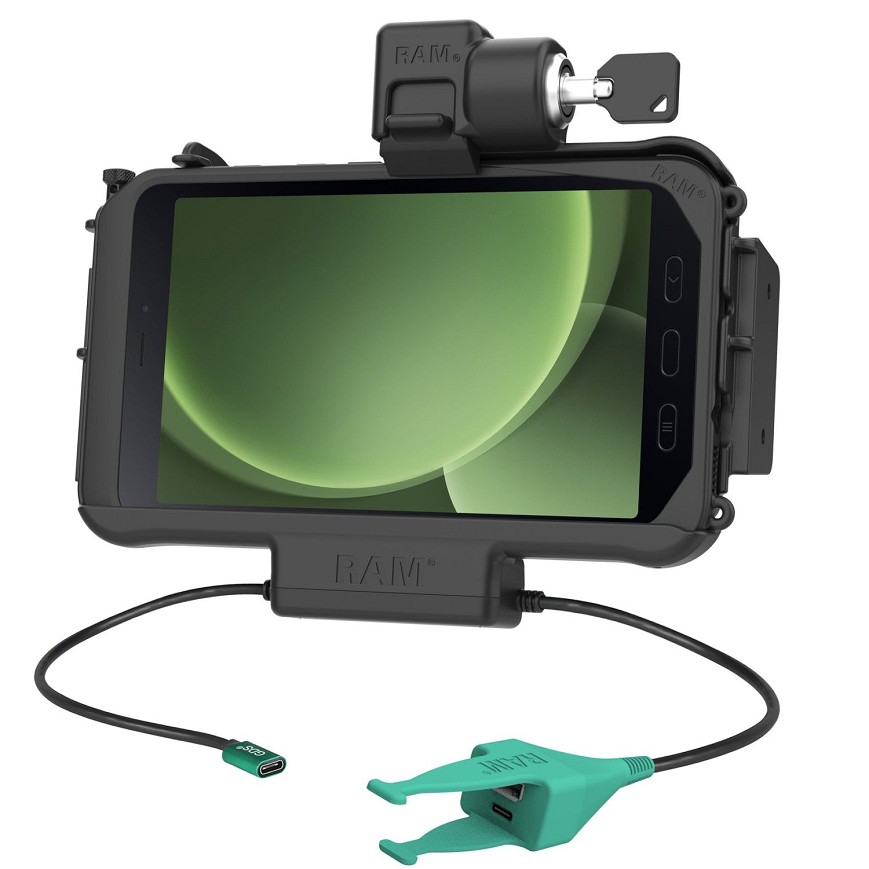

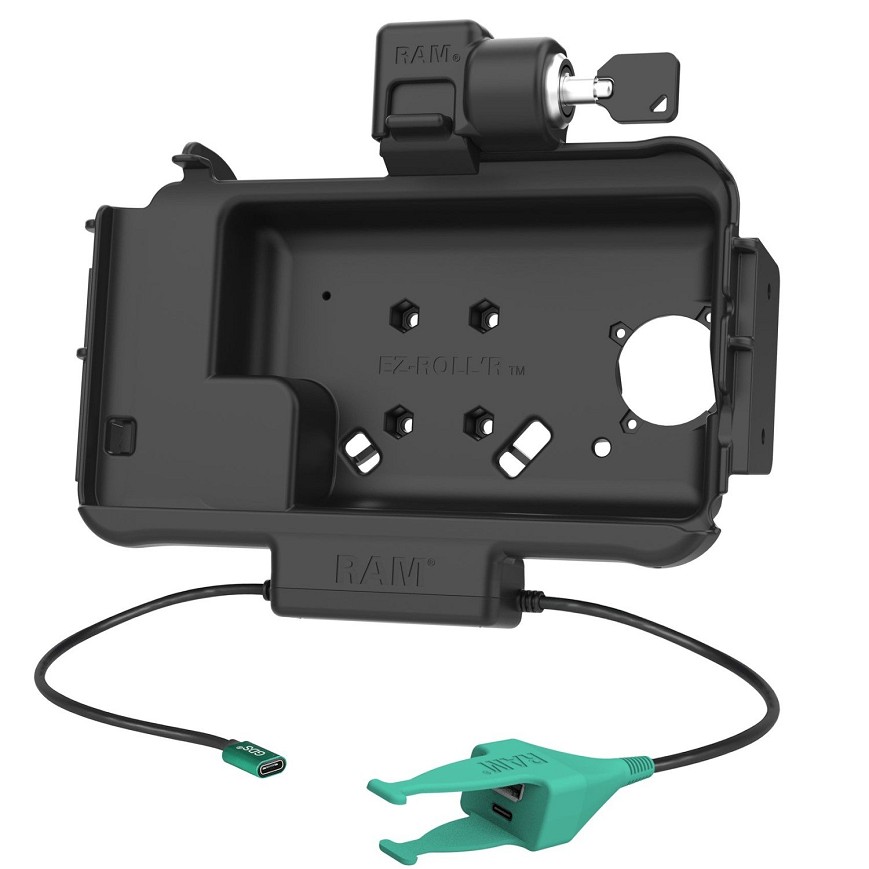

RAM® Locking USB-C Modular Dock + USB-C & USB-A Data for Tab Active5 & 3

RAM Mounts
RAM Mounts
309.69 EUR
Brand:
RAM Mounts
Product code:
ram-hol-sam58cpkln-cau
Serial number
RAM-HOL-SAM58CPKLN-CAU
108 390 HUF
Netto price: 85 346 HUF
Piece (pc)
Piece (pc)
Description

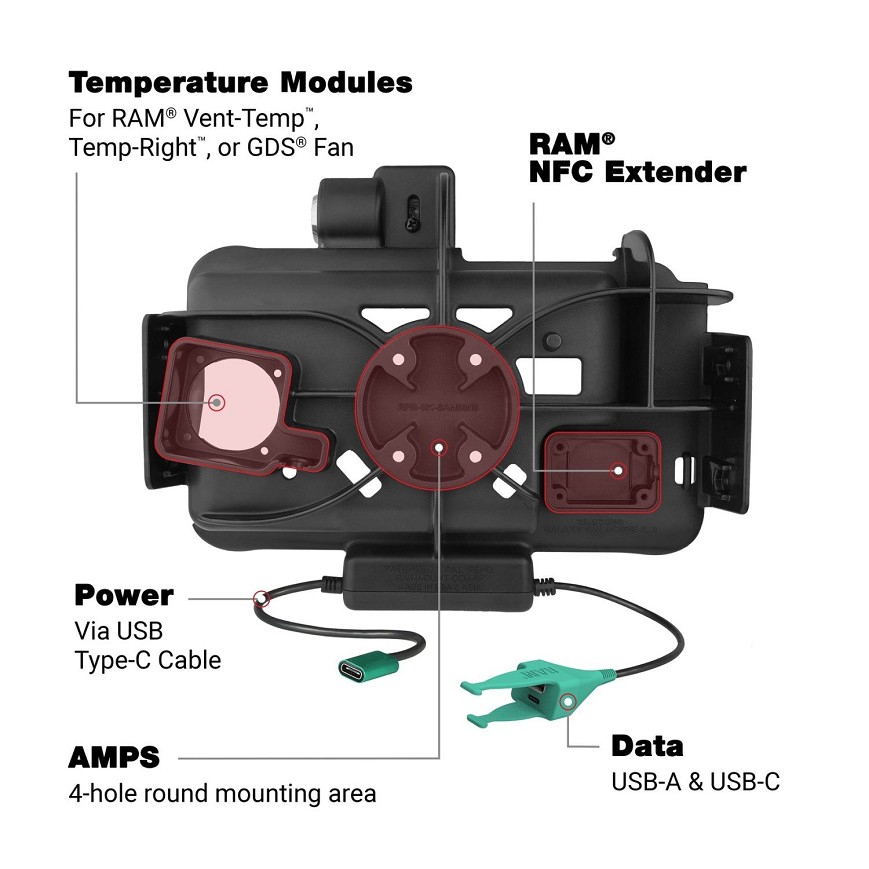

The RAM® Locking USB-C Modular Dock + USB-C & USB-A Data for Tab Active5 & Tab Active3 (RAM-HOL-SAM58CPKLN-CAU) was thoughtfully designed to meet the demands of commercial truck drivers, field service technicians, pupil transporters, logistics managers, forklift operators, and more. Power and data sync capabilities are provided to the device through GDS® pogo pins while taking advantage of this cradle's dual USB port to support up to two additional peripherals, making this the ideal, compact mounting solution for your mobile workstation. This key-locking modular dock is compatible with the RAM® Skin™ or factory device skin along with most RAM® accessories including: Temperature Control Accessories, RAM® NFC Extender, and side bracket accessory attachments. Modular docks are not compatible with the GDS® Hand-Stand™ but are compatible with the GDS® Roto-Mag™. Access to the stylus remains while the device is docked. Included is a set of four nuts and bolts to connect the dock to any RAM® components containing the universal AMPS hole pattern. Also included is the USB Type-C female pigtail, cable clamp, and zip ties.
Specification
Brand
RAM Mounts
EAN
793442018794
Hardware Included
(4) #8-32 x 5/8" Machine Screws, (4) #8-32 Nylock Nuts, (1) Cable Clamp, (2) Large Cable Ties, (8) Small Cable Ties
Input Voltage
5.3-5.4VDC
Output Voltage
5VDC
Power Output
500mA
Input Connector
USB Type-C Female
Input Cable Length
215mm
Output Connector
(1) USB-C Female, (1)USB-A Female
Output Cable Length
215mm
Peripheral Output
900mAh (per port)
Transfer Speed
480Mbps
Materials
High strength composite
Packaging Type
Poly Bag
Hole Pattern
4-Hole AMPS: 1.181" x 1.496"
Declaration
EAN code
793442018794
Netto weight
0.6 kg
Brutto weight
0.6 kg
