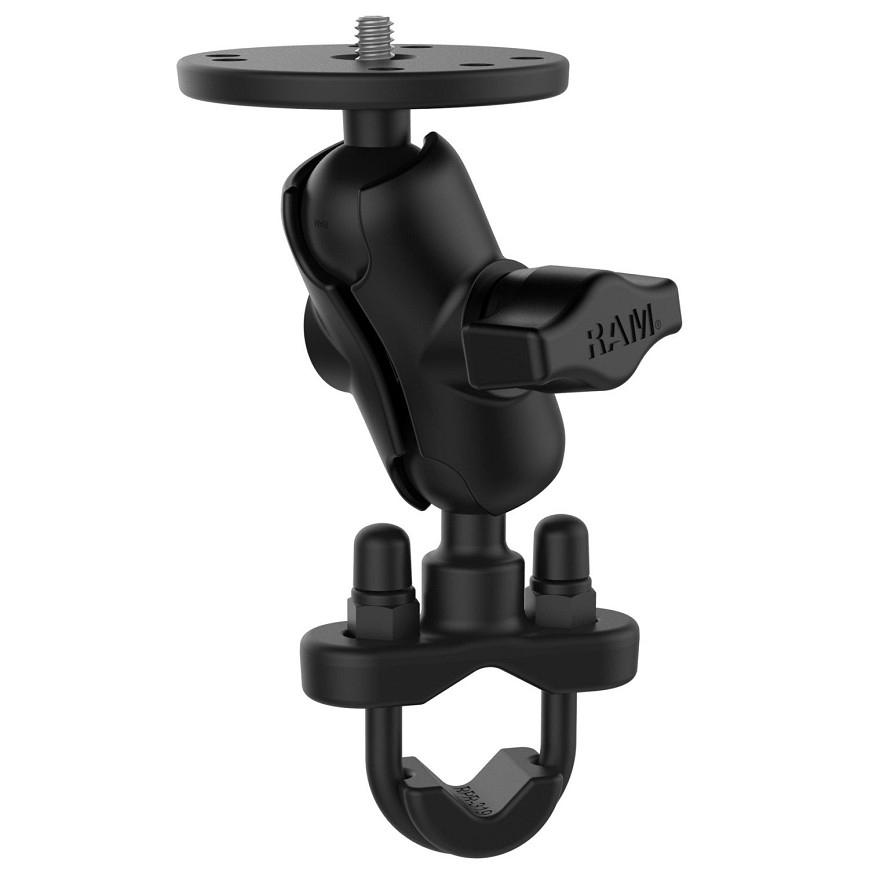

RAM® Handlebar U-Bolt Double Ball Mount 1/4"-20 Threaded Stud - Short
25 200 HUF
Netto price:
19 843
HUF
Piece
(pc)
Piece
(pc)
Description
The RAM zinc coated u-bolt rail base consists of the 1" diameter ball and socket system with RAM Universal 1/4"-20 thread centered on a 2.5" diameter plate. This mount is designed to be a universal mounting solution for both still and moving cameras. The base has a 1.0" diameter rubber ball designed to sit at right angles to the mounting rail. The zinc coated metal u-bolt and nuts included will fit a circular rail with diameter from 0.5" to 1.25". To mount the rail base, place the top of the base on the rail and then slide the u-bolt around the rail, into the holes in the base top. Now tighten the screws onto the u-bolt until the base is clamped firmly. If you desire, you can now slot the black composite covers over the exposed ends of the u-bolt.
Specification
- Brand
- RAM Mounts
- EAN
- 793442149191
- Hardware Included
- (1) 1/4"-20 U-Bolt for .5" - 1" Rails, (1) 1/4"-20 U-Bolt for 1" - 1.25" Rails, (2) 1/4"-20 Nylock Nuts, (2) Rubber Caps, (1) U-Bolt Spacer
- Clamp Range
- .5" - 1.25" diameter
- Socket to Socket Length
- 1.75"
- Ball Size
- B Size (1")
- Weight Capacity
- Standard Use: 2 lbs, Heavy-Duty Use: 1 lb
- Materials
- Marine-grade aluminum
- Packaging Type
- Poly Bag
- Hole Pattern
- 4-Hole AMPS: 1.181" x 1.496", 3-Hole 120-Degree: 1.812" Diameter
Declaration
- EAN code
- 793442149191
- Netto weight
- 0.27 kg
- Brutto weight
- 0.27 kg
