RAM® Drill-Down Double Ball Mount for Raymarine Dragonfly
21 210 HUF
Netto price:
16 701
HUF
Piece
(pc)
Piece
(pc)
Description

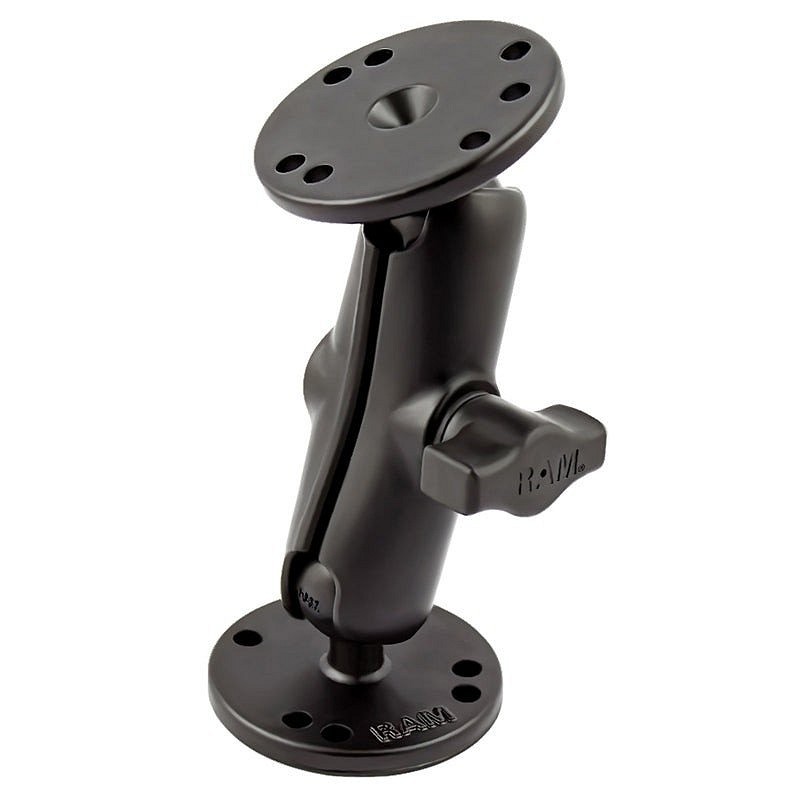

The RAM-B-101-RYM1 consists of (2 quantity) 2.5" diameter round bases that contains the universal AMPS hole pattern and standard length double socket arm. Included are (3 quantity) (#8-32 x 3/4" PH PD Mach Screws) and (3 quantity) (#8-32 SS Nylock Nuts) that will connect the RAM-B-101-RYM1 to the bottom of all Raymarine® Dragonfly™ Sonar/GPS devices. The mount is designed with a RAM 1" diameter patented rubber ball and socket system that has adjustment points at both ends of the double socket arm, allowing for almost infinite adjustment and perfect viewing angles. This is a drill-down mounting solution.
Specification
- Brand
- RAM Mounts
- EAN
- 793442941559
- Hardware Included
- (3) #8-32 x 3/4" Machine Screws, (3) #8-32 Nylock Nuts, (3) .312" x .187" Shoulder Washers
- Socket to Socket Length
- 3"
- Ball Size
- B Size (1")
- Weight Capacity
- Standard Use: 2 lbs, Heavy-Duty Use: 1 lb
- Materials
- Marine-grade aluminum
- Packaging Type
- Retail Bag
- Product Dimensions
- Overall Height: 5"
- Hole Pattern
- 4-Hole AMPS: 1.181" x 1.496", 3-Hole 120-Degree: 1.812" Diameter
Declaration
- EAN code
- 793442941559
- Netto weight
- 0.28 kg
- Brutto weight
- 0.28 kg
