RAM® Drill-Down Ball Mount for Humminbird Helix 8-10 & XPLORE Series
69 160 HUF
Netto price:
54 457
HUF
Piece
(pc)
Piece
(pc)
Description

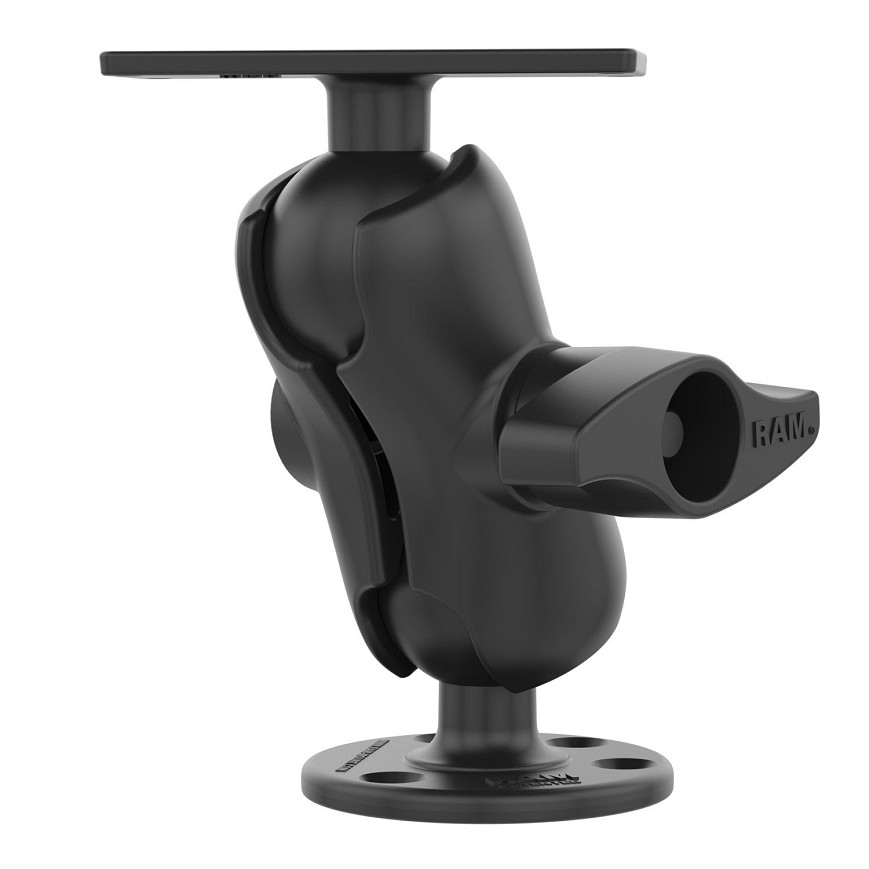

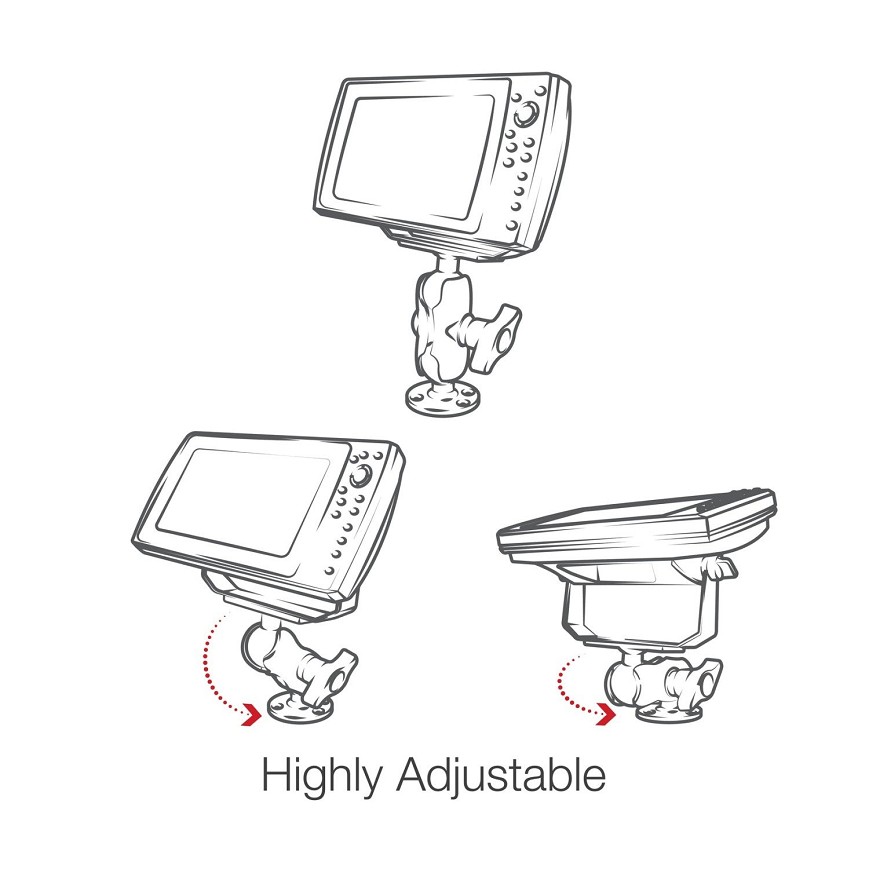

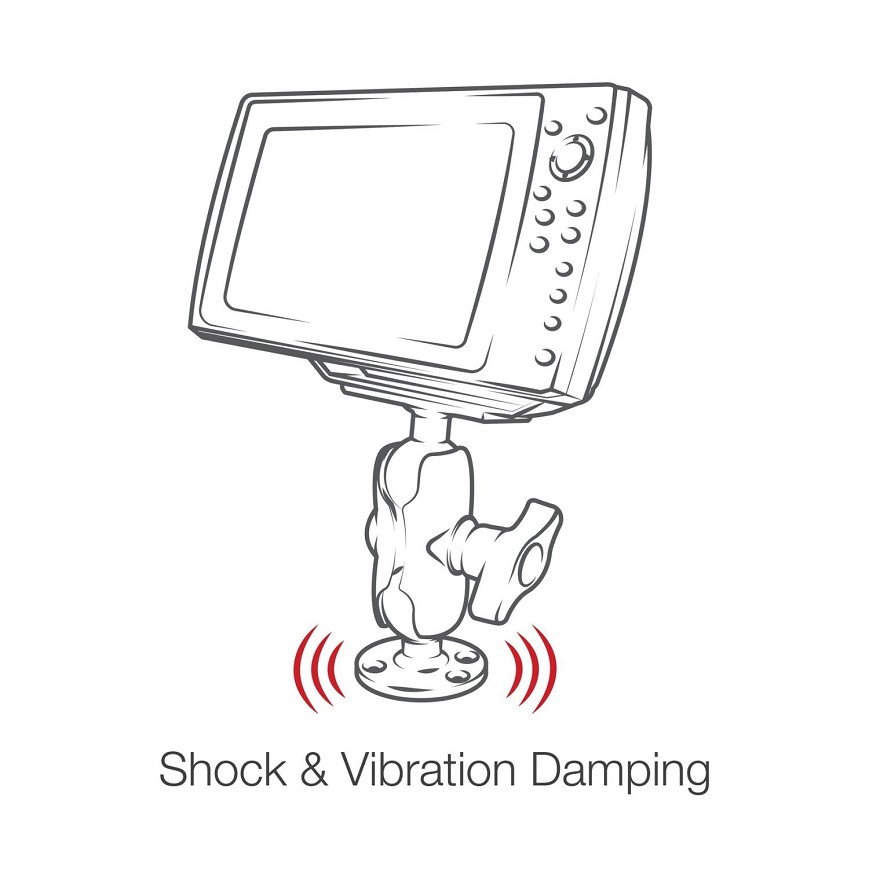

This powder-coated, marine-grade aluminum Humminbird mount consists of a short length double socket arm, a 3.68" diameter round base with a 2.25" D size ball, and one 1.5" x 4.5" rectangular plate with a 2.25" D size ball. The round plate contains two mounting holes at 180-degrees and three mounting holes at 120-degrees. The 1.5" x 4.5" rectangular plate contains a 4-hole pattern compatible with Humminbird 8, 9 & 10 models. The rubber ball and socket technology provides shock and vibration damping, and allows for near-infinite adjustability so you can position your device at the perfect viewing angle.
Specification
- Brand
- RAM Mounts
- EAN
- 793442949531
- Plate Size
- Top Plate: 2" x 5", Bottom Plate: 3.68" Diameter
- Socket to Socket Length
- 3.6"
- Ball Size
- D Size (2.25")
- Weight Capacity
- Standard Use: 6 lbs, Heavy-Duty Use: 5 lbs
- Materials
- Marine-grade aluminum
- Packaging Type
- Poly Bag
- Product Dimensions
- Overall Height: 7.875"
- Hole Pattern

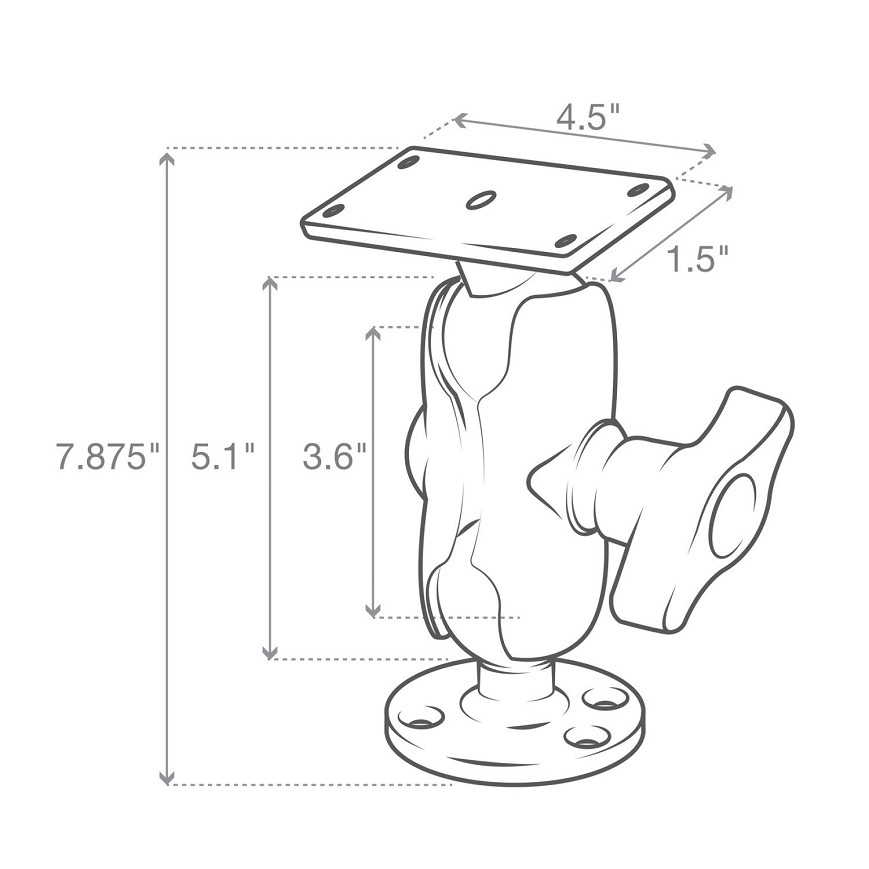

- Rectangular Plate: 1.5" x 4.5", Round Plate: See Drawing
Declaration
- EAN code
- 793442949531
- Netto weight
- 1.36 kg
- Brutto weight
- 1.36 kg
