RAM® Brake/Clutch Reservoir Mount for TomTom Rider 2 + More - Medium
25 500 HUF
Netto price:
20 079
HUF
Piece
(pc)
Piece
(pc)
Description

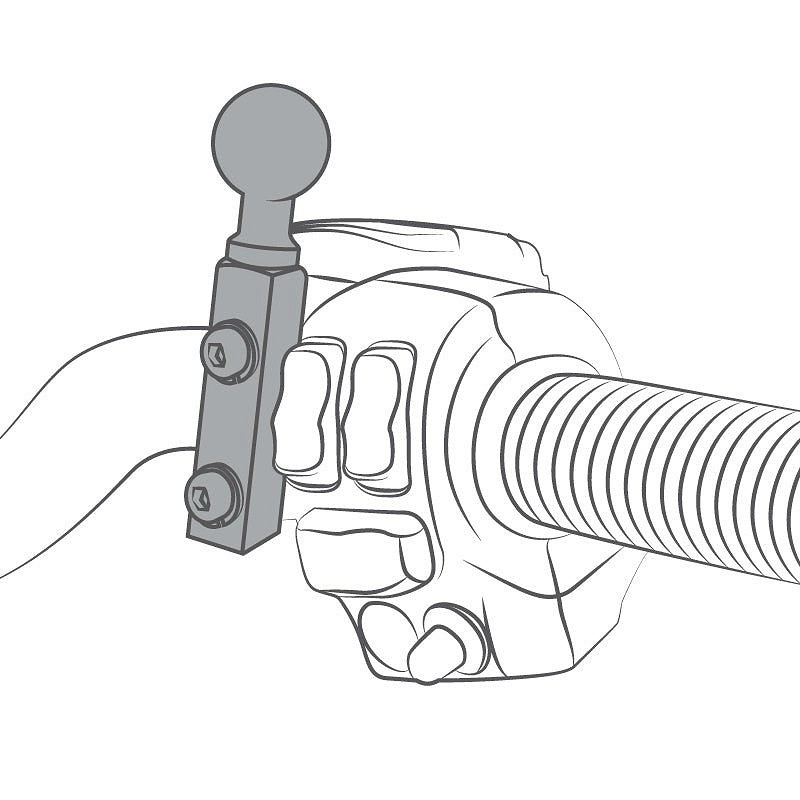

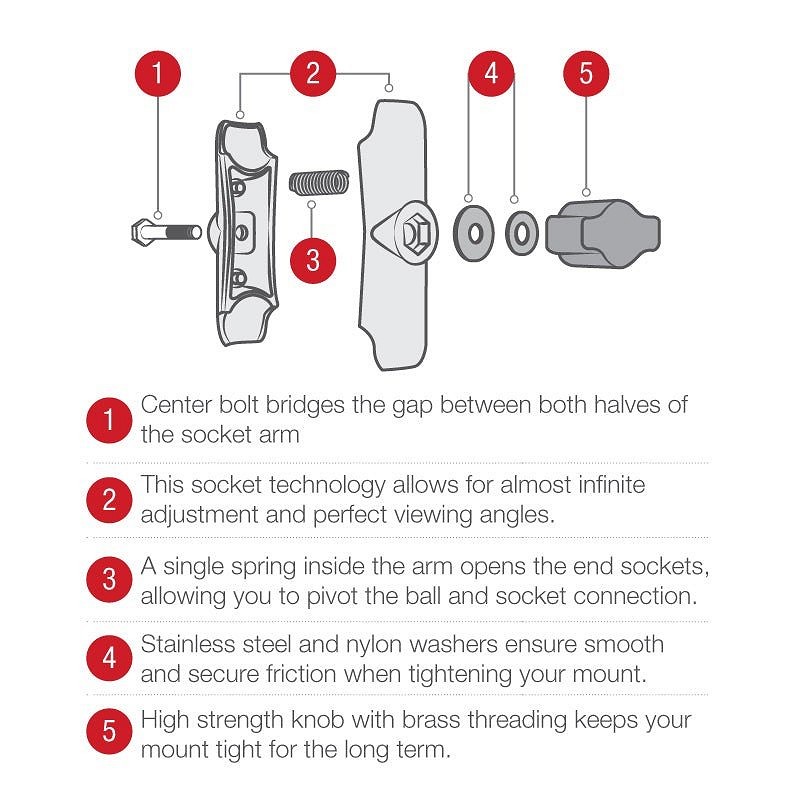

The RAM-B-174-TOM1U consists of a hardware for mounting to both brake/clutch reservoirs and rails that are 0.5" to 1.25" in diameter, double socket arm and custom TomTom base adapter. The mounting hardware for brake/clutch reservoirs include both standard and metric mounting bolts. The custom TomTom adapter base connects to the back of the factory cradle that is included with the purchase of the TomTom Rider 2/Urban Rider. The screws that are included with the RAM-B-174-TOM1U match up with the threads on the back of the RIDER 2/Urban Rider. The mount is designed with a RAM 1" diameter patented rubber ball and socket system that has adjustment points at both ends of the double socket arm; this allowing for almost infinite adjustment and perfect viewing angles.
Specification
- Brand
- RAM Mounts
- EAN
- 793442906107
- Hardware Included

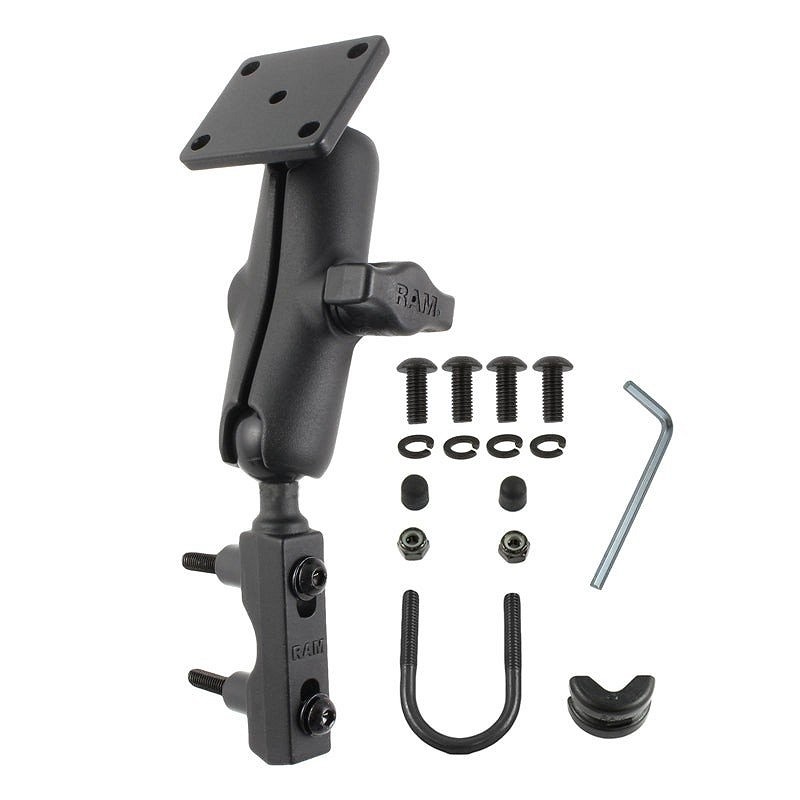

- (4) M5 x 12mm Machine Screws, (4) M5 Stainless Steel Lock Washers, (1) M3 Hex Key Wrench, (2) M6 x 55mm Hex Bolts, (2) #1/4-20 x 2" Hex Bolts, (2) 1/2" Spacers, (2) 1/4" Split Lock Washers, (1) 1/4"-20 U-Bolt for .5" - 1" Rails, (1) 1/4"-20 U-Bolt for 1" - 1.25" Rails, (2) 1/4"-20 Nylock Nuts, (2) Rubber Caps, (1) U-Bolt Spacer
- Clamp Range
- .5" - 1.25" diameter
- Socket to Socket Length
- 3"
- Ball Size
- B Size (1")
- Weight Capacity
- Standard Use: 2 lbs, Heavy-Duty Use: 1 lb
- Materials
- Marine-grade aluminum
- Packaging Type
- Poly Bag
- Hole Pattern
- 4-Hole AMPS: 1.181" x 1.496"
Declaration
- EAN code
- 793442906107
- Netto weight
- 0.35 kg
- Brutto weight
- 0.35 kg
