GDS® Uni-Conn™ Right Locking Dock + USB-A & RJ45 with Release Lever

RAM Mounts
RAM Mounts
361.23 EUR
Brand:
RAM Mounts
Product code:
ram-gds-docklr-u1cp-rj45au
Serial number
RAM-GDS-DOCKLR-U1CP-RJ45AU
126 430 HUF
Netto price: 99 551 HUF
Piece (pc)
Piece (pc)
Description

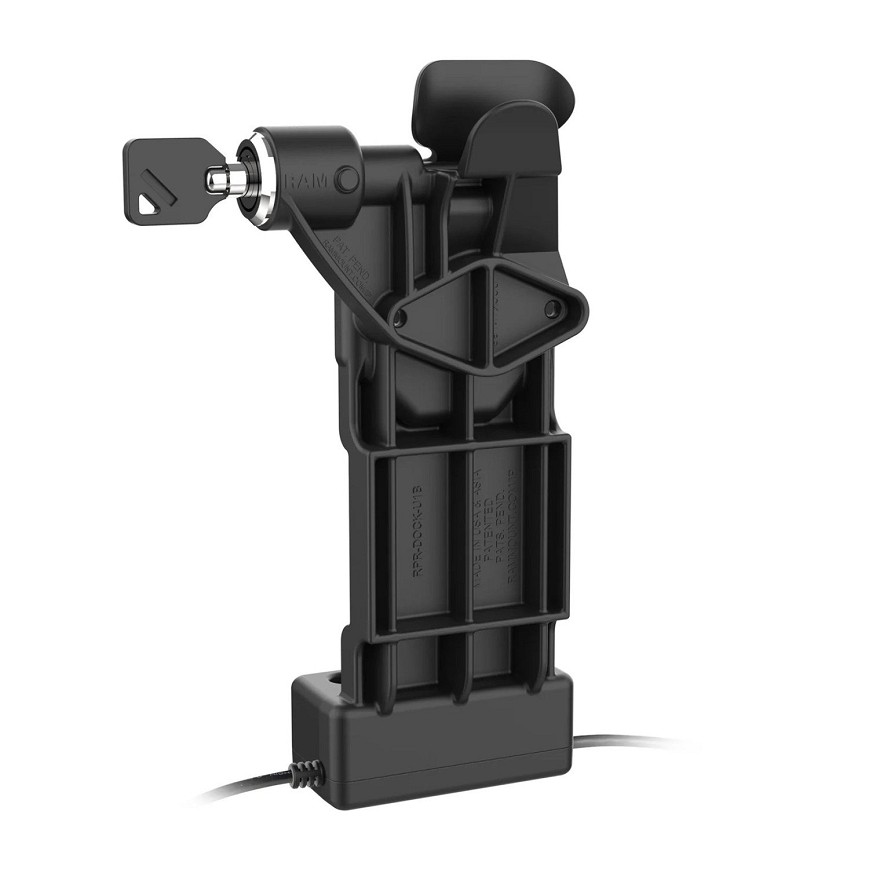

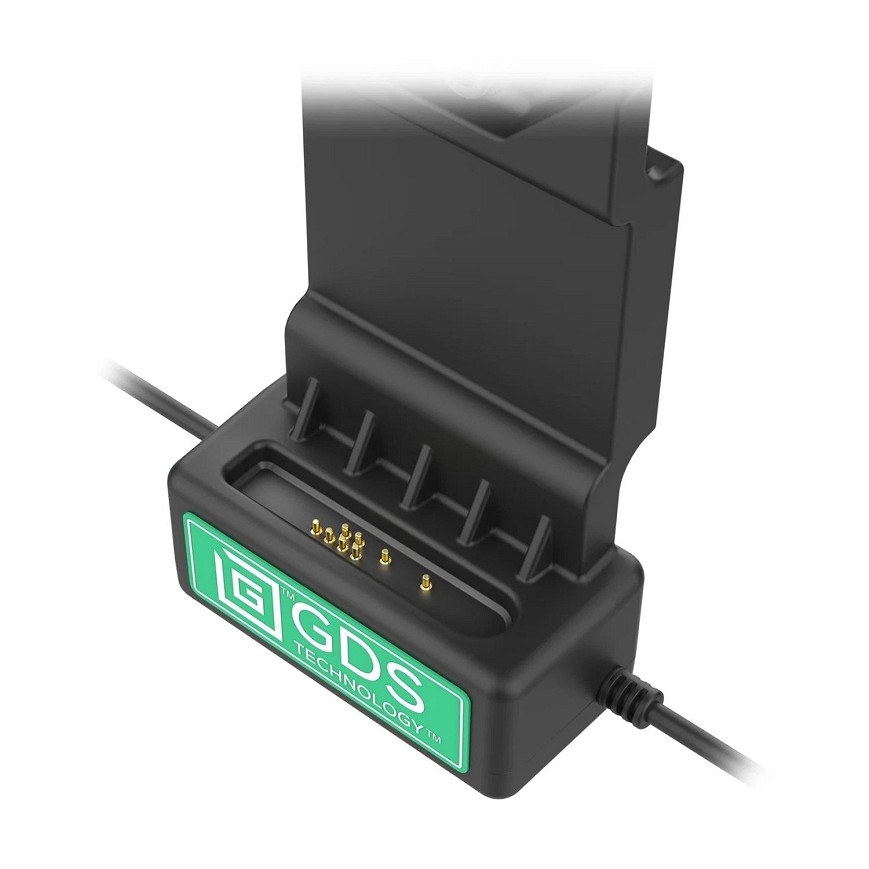

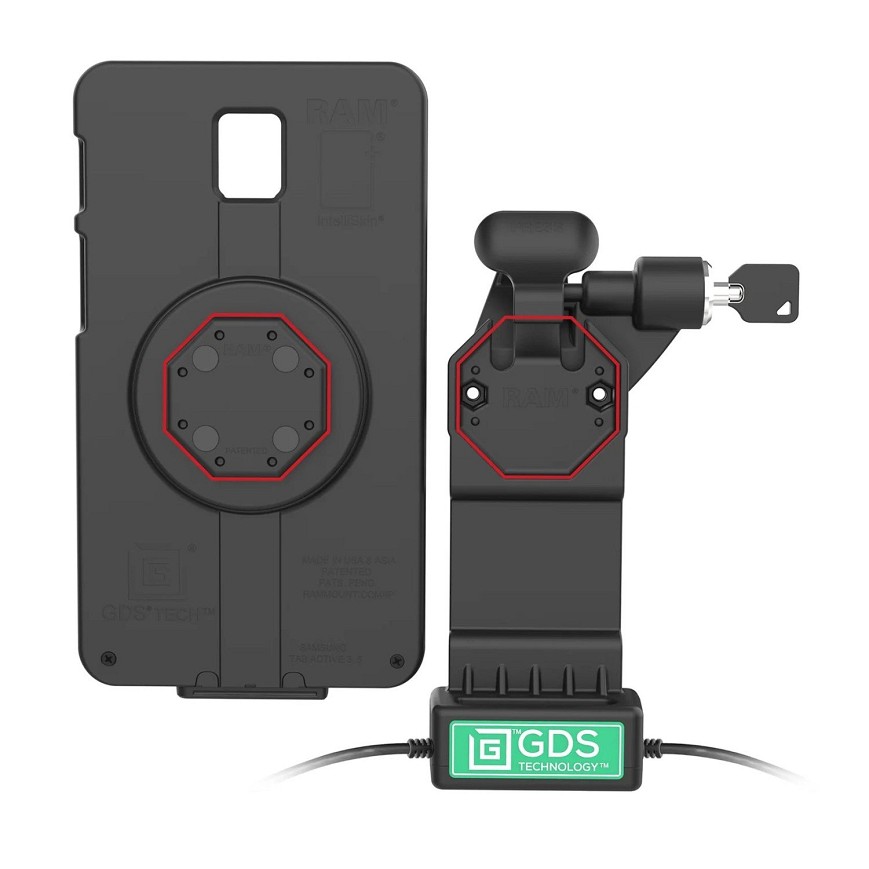

The GDS® Uni-Conn™ Right Locking Powered Dock with USB-A & RJ45 Data (RAM-GDS-DOCKLR-U1CP-RJ45AU) is a revolutionary universal docking platform. This clip-in, quick-release solution securely holds your device in place and features a key lock on the right side for additional theft deterrence. For the same dock with a lock on the left side, see RAM-GDS-DOCKLL-U1CP-RJ45AU. When docked, power is delivered via the pogo pin connection, enabled by the USB-C female connector. It also includes a dual-input pigtail that features one RJ45 (ethernet) connector for a direct and secure connection to your network alongside one USB Type-A female connector for connecting peripherals to your tablet. It features an easy docking and undocking process, simply place the IntelliSkin®-wrapped device into the base of the dock and push it to snap into place. When undocking, a simple push of a lever releases the tablet. The docking station requires the GDS® Uni-Conn™ adapter (RAM-GDS-U1U) to be installed on the intended IntelliSkin®-wrapped device. The GDS® Uni-conn™ dock is backed by a 3-year warranty. Warranty is void if lever stop is not installed. Always Protected. Always Connected.® One Dock to Connect Them All™.
Specification
Brand
RAM Mounts
EAN
793442022722
Hardware Included
(2) Keys, (1) Locking Lever Stop, (2) #8-32 x 1" Machine Screws, (2) #8-32 Nylock Nuts, (1) Cable Clamp Kit
Output Voltage
Type-C Tablets: 5V - 15V @ 3A max, mUSB Tablets: 5V @ 1.5A max
Power Output
15W
Input Connector
USB Type-C (Power In)
Input Cable Length
215mm
Output Connector
(1) USB Type-A & (1) RJ45 Female
Output Cable Length
215mm
Peripheral Output
900mAh
Materials
High strength composite
Packaging Type
Poly Bag
Product Dimensions
Overall Width: 4.27", Overall Height: 8.44", Overall Depth: 3.03"
Hole Pattern
2-Hole AMPS: 1.912"
Declaration
EAN code
793442022722
Netto weight
0.38 kg
Brutto weight
0.38 kg
