GDS® Uni-Conn™ Powered Snap-In Dock with USB-C Connector
37 910 HUF
Netto price:
29 850
HUF
Piece
(pc)
Piece
(pc)
Description

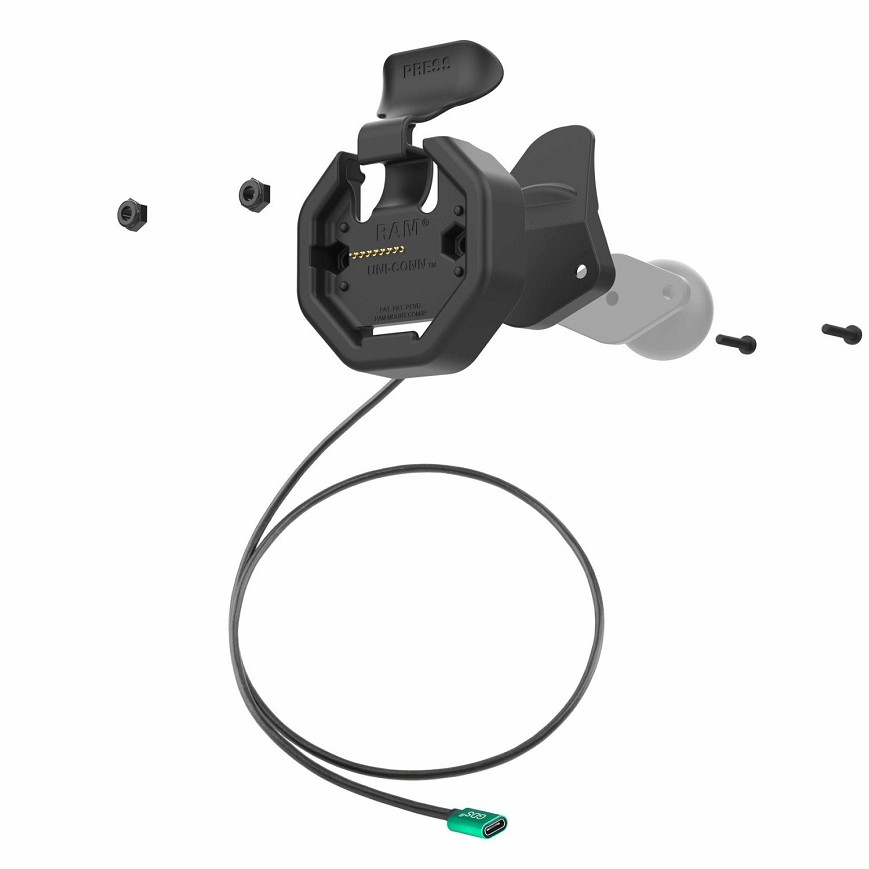

The GDS® Uni-Conn™ Powered Snap-In Dock with USB-C Connector (RAM-GDS-DOCK-U3CPU) is a versatile snap-in docking solution for devices enclosed in an IntelliSkin® Thin-Case™ with rear pogo pads. Power is provided to the pogo pins integrated into the GDS® Uni-Conn™ adapter via the USB-C connector. This dock features a 2-hole AMPS pattern, allowing it to be integrated into the RAM® ball and socket mounting system with a RAM® Diamond or Round Ball Base. The snap-in attachment method makes this dock ideal for rugged environments, including vehicles. The GDS® Uni-conn™ dock is backed by a 3-year warranty. Warranty is void if lever stop is not installed. One Dock to Connect Them All™ Always Protected. Always Connected.®
Specification
- Brand
- RAM Mounts
- EAN
- 793442022654
- Hardware Included
- (1) Lever Stop, (2) #8-32 x 1.125" Machine Screws, (2) #8-32 Nylock Nuts
- Output Voltage
- USB-C Tablets: 5V - 20V @ 3A Max, mUSB Tablets: 9V @ 1.67A Max
- Power Output
- 60W Max
- Input Connector
- USB Type-C (Female)
- Input Cable Length
- 800mm
- Materials
- High strength composite
- Packaging Type
- Poly Bag
- Hole Pattern
- 2-Hole AMPS: 1.912"
Declaration
- EAN code
- 793442022654
- Netto weight
- 0.15 kg
- Brutto weight
- 0.15 kg
