GDS® Uni-Conn™ Left Locking Dock + Single USB-A with Release Lever

RAM Mounts
RAM Mounts
262.31 EUR
Brand:
RAM Mounts
Product code:
ram-gds-dockll-u1cdu
Serial number
RAM-GDS-DOCKLL-U1CDU
91 810 HUF
Netto price: 72 291 HUF
Piece (pc)
Piece (pc)
Description

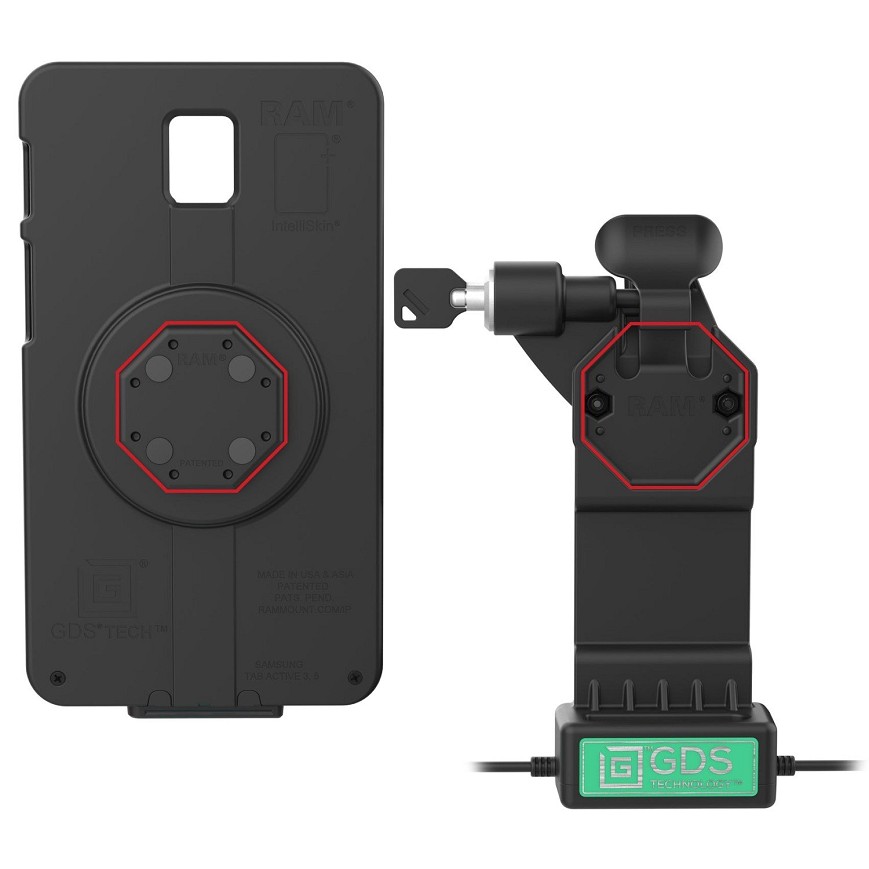

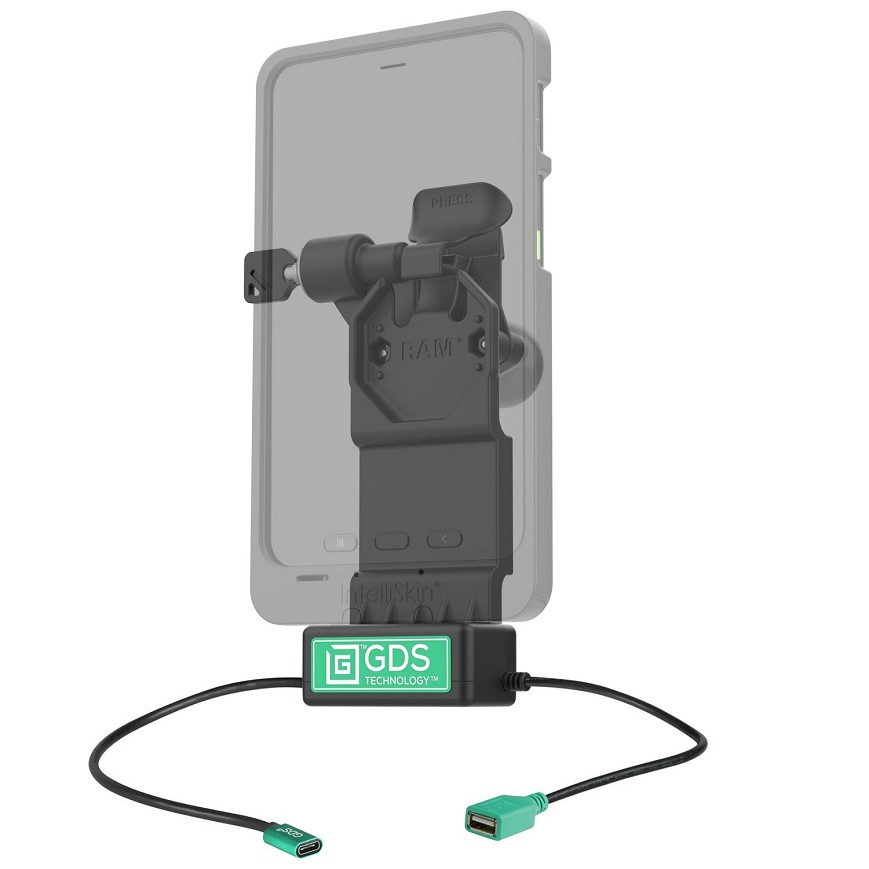

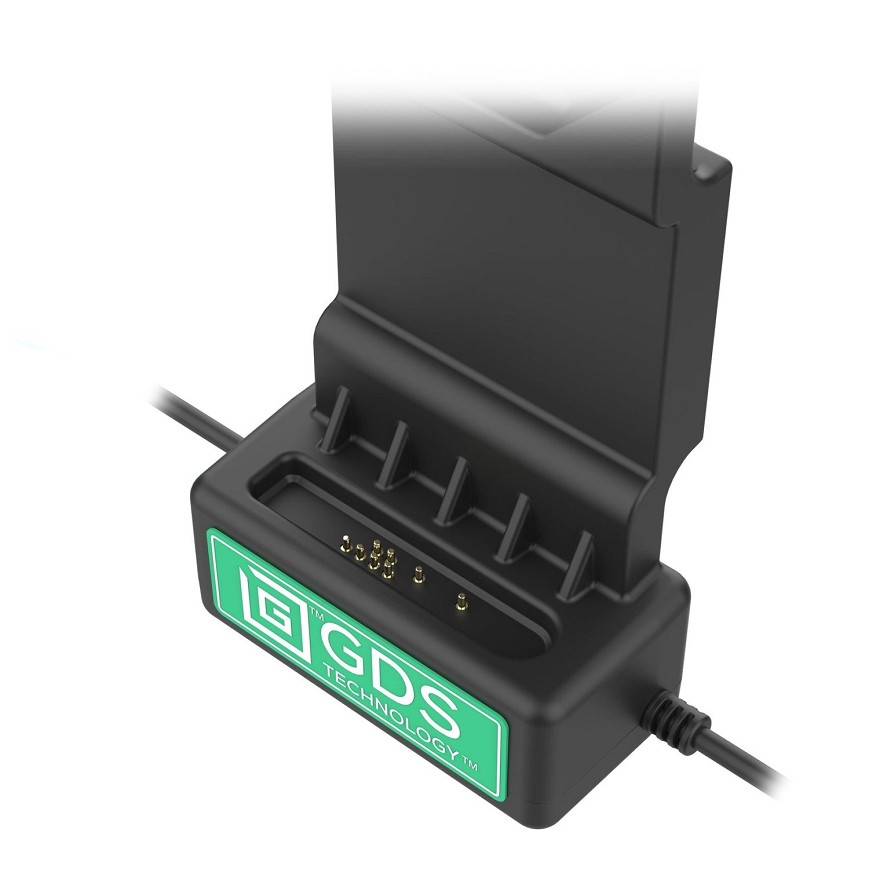

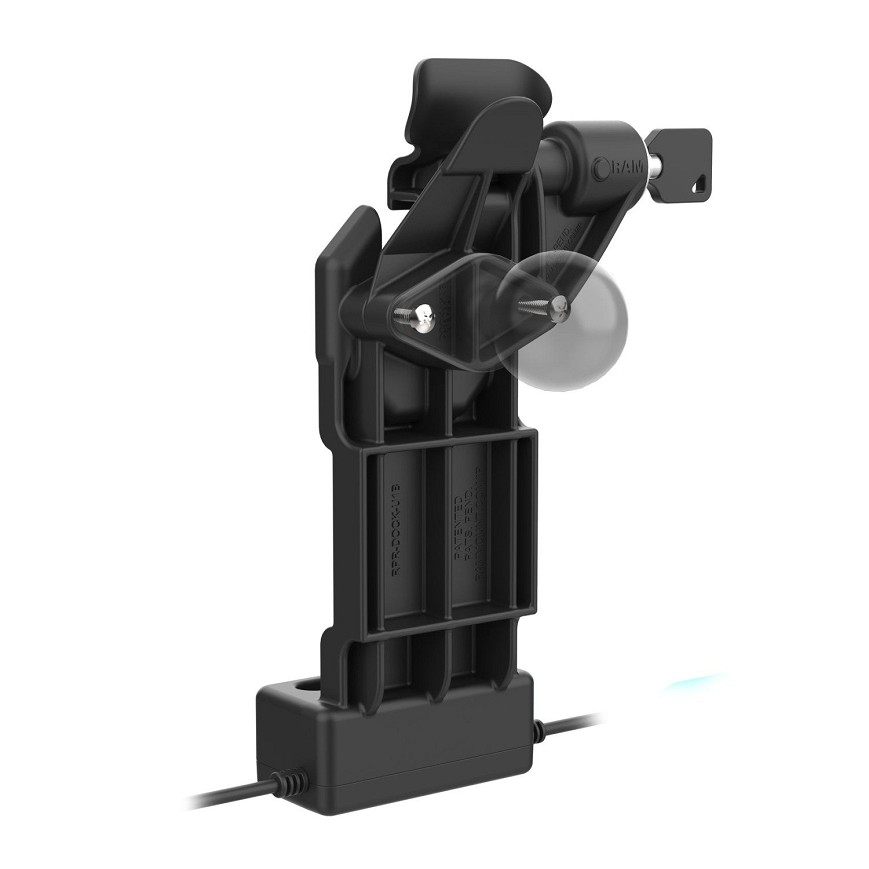

The GDS® Uni-Conn™ Locking Dock + Single USB-A (RAM-GDS-DOCKLL-U1CDU) is a revolutionary universal docking platform. This clip-in, quick-release solution securely holds your device in place and features a key lock for additional theft deterrence. When docked, power is delivered via the pogo pin connection, enabled by the USB-C female connector. Integrate up to one peripheral device into your solution with the USB-A female connector. It features an easy docking and undocking process, simply place the IntelliSkin®-wrapped device into the base of the dock and push it to snap into place. When undocking, a simple push of a lever releases the tablet. The docking station requires the GDS® Uni-Conn™ adapter (RAM-GDS-U1U) to be installed on the intended IntelliSkin®-wrapped device. Current compatibility for this fixed dock height includes the Samsung Tab A7 Lite, Tab A 8.4, Tab S9 FE, Tab S9 FE+, Tab Active5, Tab Active3, and Tab A9+. The GDS® Uni-conn™ dock is backed by a 3-year warranty. Warranty is void if lever stop is not installed. Always Protected. Always Connected.® One Dock to Connect Them All™.
Specification
Brand
RAM Mounts
EAN
793442021022
Hardware Included
(2) Keys, (1) Locking Lever Stop, (2) #8-32 x 1" Machine Screws, (2) #8-32 Nylock Nuts, (1) Cable Clamp Kit
Output Voltage
5V - 12V @ 3A
Power Output
15W
Input Connector
USB Type-C, USB Type A for 1 Peripheral
Input Cable Length
215mm
Output Cable Length
215mm
Peripheral Output
500mAh
Materials
High strength composite
Packaging Type
Poly Bag
Product Dimensions
Overall Width: 4.27", Overall Height: 8.44", Overall Depth: 3.03"
Hole Pattern
2-Hole AMPS: 1.912"
Declaration
EAN code
793442021022
Netto weight
0.32 kg
Brutto weight
0.32 kg
