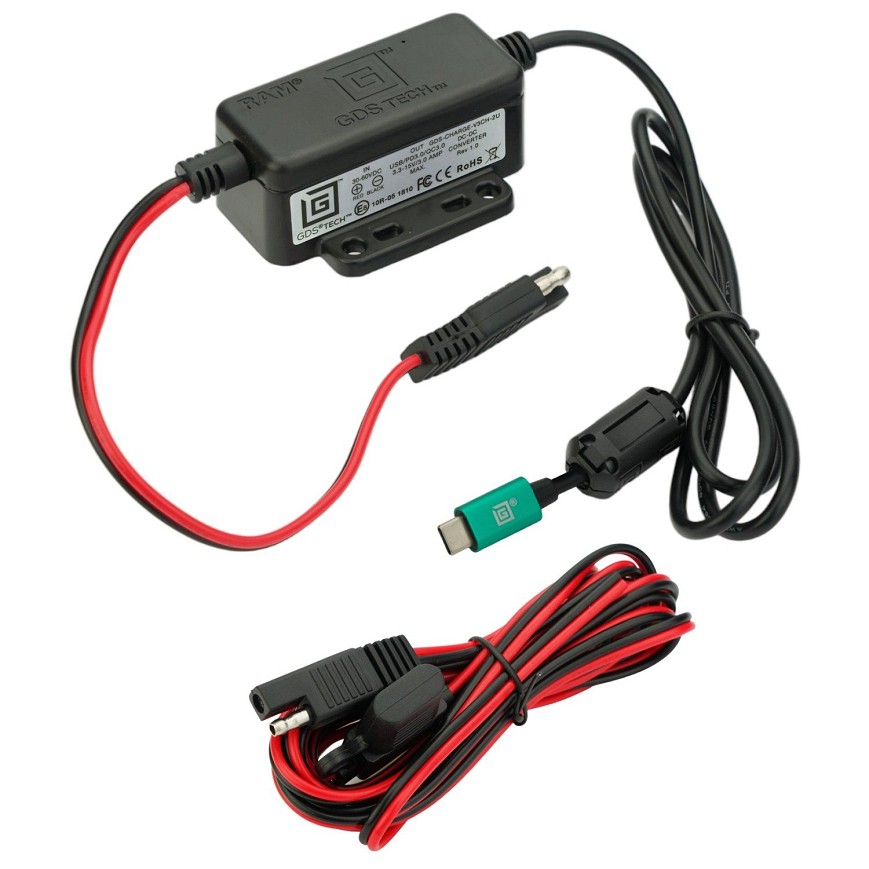

GDS® Modular 30-64V Power Delivery Hardwire Charger with Male USB Type-C
234.37 EUR
- Brand:
- RAM Mounts
- Product code:
- ram-gds-charge-v3ch-2u
- Serial number
- RAM-GDS-CHARGE-V3CH-2U
82 030 HUF
Netto price:
64 591
HUF
Piece
(pc)
Piece
(pc)
Description
The GDS® Modular Hardwire Charger is the ideal solution for providing power to any USB Type-C GDS® vehicle solution. By connecting directly to the power source of your vehicle, the GDS® Charger delivers up to 15V of USB Type-C power to your device. When it comes time to upgrade, avoid any rewiring by simply unplugging the power connector and attaching the new charger components. This charger supports Power Delivery. Always Protected. Always Connected.®
Specification
- Brand
- RAM Mounts
- EAN
- 793442015908
- Input Voltage
- 30-64VDC
- Output Voltage
- 5-15VDC
- Output Current
- 3A max
- Input Connector
- Bare Wire
- Input Cable Length
- 2.5 Meters
- Output Connector
- USB Type-C Male
- Output Cable Length
- 1 Meter
- Operating Temperature
- -20°C to +70°C
- Storage Temperature
- -40°C to +85°C
- Regulatory
- Over Voltage Protection, Short Circuit Protection, Reverse Polarity Protection, RoHS Compliance, WEEE Compliance, SAE J-1113-5 Load Dump (Transient Voltage), Moisture Resistant
- Certifications
- CE Certification, RCM Certification, FCC Certification, UL 62368-1 Certificaton
- Packaging Type
- Poly Bag
Declaration
- EAN code
- 793442015908
- Netto weight
- 0.21 kg
- Brutto weight
- 0.21 kg
