GDS® Ecosystem™ Vehicle Bundle with Monitor, Keyboard & Phone Mount
1 220 110 HUF
Netto price:
960 717
HUF
Piece
(pc)
Piece
(pc)
Description

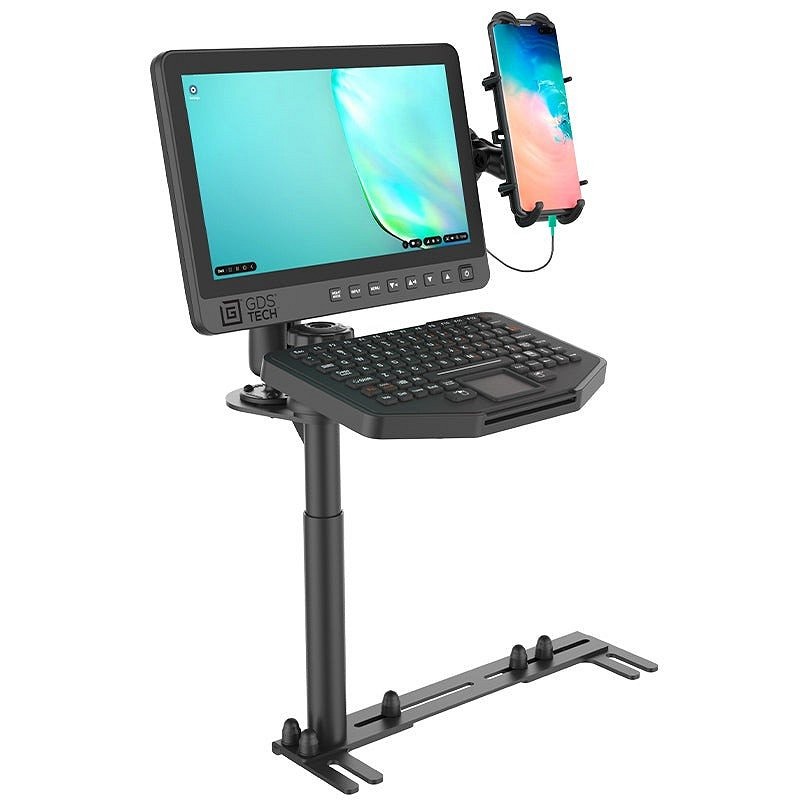

All the benefits of the GDS® Ecosystem™ in one mounting system to create your very own mobile workstation. Centralized around the GDS® View™ 13.3" touch screen monitor, the GDS® Ecosystem™ Vehicle Bundle is mounted on the universal RAM® No-Drill™ vehicle base and tele-pole swing arm system, accompanied by the GDS® Keyboard™ with trackpad, display bracket, RAM® Quick-Grip™ XL phone mount, the GDS® Tough-Hub™, charging accessories and USB Type-C extension cable. This all-in-one mobile workstation is highly adjustable and supports add-on peripherals for a more customized workstation. Take advantage of this vehicle mount bundle to enable Samsung DeX In-Vehicle by placing your DeX compatible phone into the RAM® Quick-Grip™ XL and plugging your DeX Cable directly into the GDS® View™ Monitor.
Specification
- Brand
- RAM Mounts
- EAN
- 793442012389
- Hardware Included
- Assembly Hardware, (1) HDMI Cable, (1) VGA Cable, (1) USB Type-B to USB Type-A Cable, Hardwire & CLA chargers for monitor, USB Type-C cable & CLA charger for hub & phone
- Holder Dimensions
- For Phone Holder:, Height Range: 5.75" - 8.25", Width Range: 2.625" - 3.625", Max Depth: .72"
- Monitor Specifications
- Screen Size: 13.3", Anti-glare and Anti-fingerprint treatment applied on LCD, Max Resolution: 1920 x 1080 high resolution, Aspect ratio: 16:9, Tough Panel: 2-point capacitive touch, Audio: (2) 2W Speakers, Brightness: 800nits, Contrast ratio: 1000:1, Red monochrome night mode to reduce eye strain for night viewing, Control buttons on front of monitor for easy access, Zip tie attachment loops for cable management
- Input Voltage
- Monitor: 10-30V DC, CLA Charger for Hub: 12-24V DC
- Power Output
- 63W Total (45W for Type-C & 18W for Type-A)
- Output Current
- 6A max
- Operating Temperature
- -10°C to +50°C
- Storage Temperature
- 0°C to +45°C
- Ports
- CLA Charger:, (1) Type-C Female (PD), (1) Type-A Female (QC 3.0), GDS® Tough-Hub™:, (4) USB Type A Ports - One supports BC 1.2 with power up to 7.5W (5V/1.5A), (1) RJ45 Port - Supports 10/100/1000Mbps bandwidth, (1) HDMI Port - Resolution up to 4Kx2K@30Hz, (1) USB Type-C Port - Supports data and PD charging 100W (20V/5A)), GDS® View™ Monitor:, (1) Power Input, (1) HDMI, (1) VGA, (1) 3.5mm Audio Output, (1) USB Type-B (Host Input), (3) USB Type-A (Peripheral Outputs)
- Regulatory
- Meets SAE J-1113, Integrated Short Circuit Protection (SCP)
- Certifications
- MIL-STD-810H 514.5 Vibration Tested, FCC, CE, IC, RCM, WEEE, E-Mark, ISO 7637-2, and RoHS
- Materials
- Powder coated steel, Marine grade-aluminum, High strength composite
- Packaging Type
- Box
Declaration
- EAN code
- 793442012389
- Netto weight
- 12.25 kg
- Brutto weight
- 12.25 kg
