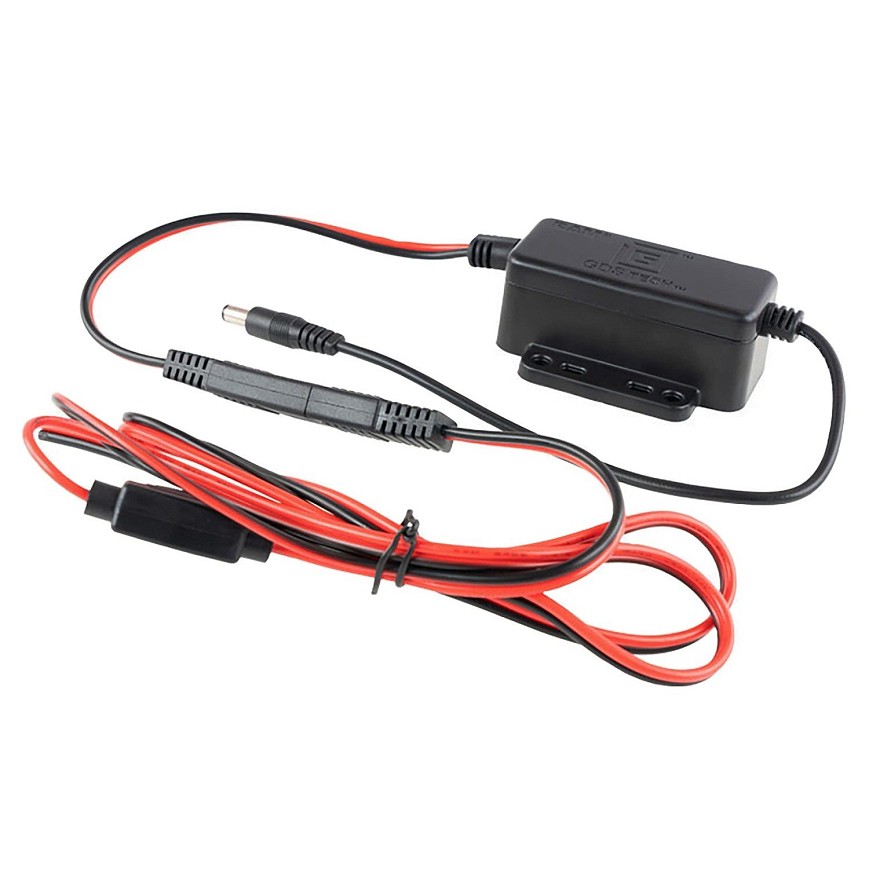

GDS® 28-60VDC Input (16VDC Output) Hardwire Charger with Male DC 5.5mm
32 430 HUF
Netto price:
25 535
HUF
Piece
(pc)
Piece
(pc)
Description
The GDS® Modular Hardwire Charger with 5.5mm Male DC cable is the ideal solution for providing power to any RAM® or GDS® DC powered docking station. When it comes time to upgrade, avoid any rewiring by simply unplugging the power connector and attaching the new charger components. This hardwire charger has an input of 28-60VDC and the 16VDC makes it ideal for a variety of applications. Always Protected. Always Connected.®
Specification
- Brand
- RAM Mounts
- EAN
- 793442224669
- Input Voltage
- 28-60VDC
- Output Voltage
- 16VDC
- Output Current
- 3.5A max
- Input Connector
- Male 5.5mm OD x 2.5mm ID Barrel Connector
- Input Cable Length
- 1.2 Meters including 2 Pole Flat Marine Connector
- Output Cable Length
- .2 Meters
- Operating Temperature
- -10°C to +70°C
- Storage Temperature
- -40°C to +70°C
- Regulatory
- Over Voltage Protection, Short Circuit Protection, Reverse Polarity Protection, RoHS Compliance, WEEE Compliance, SAE J-1113-5 Load Dump (Transient Voltage), Moisture Resistant, FCC, CE, UKCA, IC
- Certifications
- RCM Certification
- Packaging Type
- Poly Bag
Declaration
- EAN code
- 793442224669
- Netto weight
- 0.14 kg
- Brutto weight
- 0.14 kg
