GDS® 24-60VDC Input (19VDC Output) Hardwire Charger with Male DC 5.5mm
30 510 HUF
Netto price:
24 024
HUF
Piece
(pc)
Piece
(pc)
Description

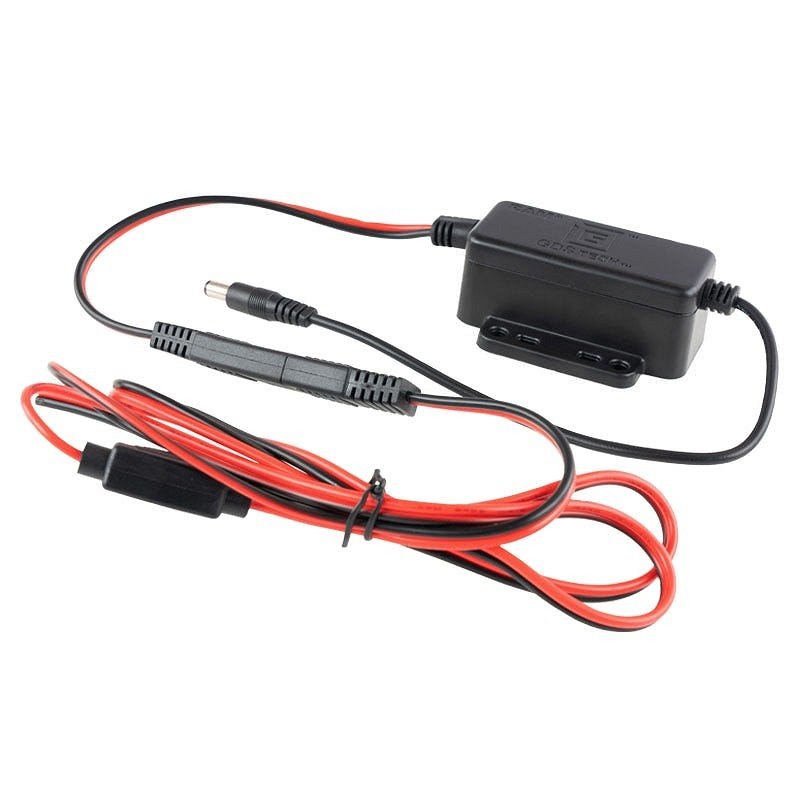

The GDS® Modular Hardwire Charger with 5.5mm Male DC cable is the ideal solution for providing power to any RAM® or GDS® DC powered docking station. When it comes time to upgrade, avoid any rewiring by simply unplugging the power connector and attaching the new charger components. This hardwire charger has an input of 24-60VDC input, 19VDC output making it ideal for forklift mounts and material handling applications. Always Protected. Always Connected.®
Specification
- Brand
- RAM Mounts
- EAN
- 793442012679
- Input Voltage
- 24-60VDC
- Output Voltage
- 19V (+/- 300mV)
- Output Current
- 3.5A max
- Input Connector
- Male 5.5mm OD x 2.5mm ID Barrel Connector
- Input Cable Length
- 1.2 Meters including 2 Pole Flat Marine Connector
- Output Cable Length
- .2 Meters
- Operating Temperature
- -10°C to +70°C
- Storage Temperature
- -40°C to +70°C
- Regulatory
- Over Voltage Protection, Short Circuit Protection, Reverse Polarity Protection, RoHS Compliance, WEEE Compliance, SAE J-1113-5 Load Dump (Transient Voltage), Moisture Resistant, FCC, CE, UKCA, IC, 3A Inline ATC Fuse, 18AWG Copper Wire, IP66
- Certifications
- E-Mark Certification, RCM Certification
- Packaging Type
- Poly Bag
Declaration
- EAN code
- 793442012679
- Netto weight
- 0.14 kg
- Brutto weight
- 0.14 kg
